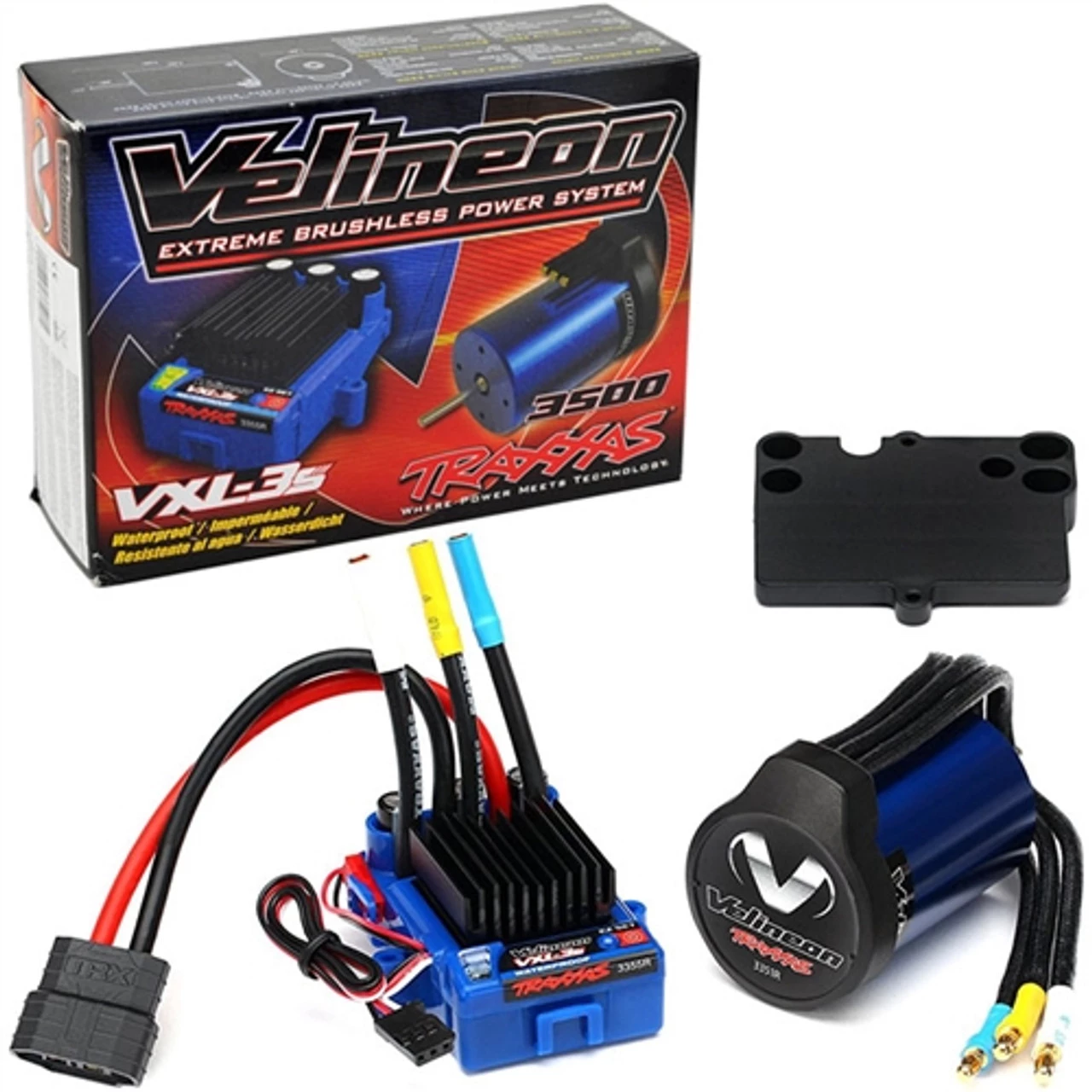

Traxxas Velineon VXL-3s Brushless Waterproof Power System Motor/ESC

This is the Traxxas Velineon VXL-3s Brushless Waterproof Motor and ESC Complete Power System for electric powered R/C vehicles. The Velineon Brushless System is the ultimate upgrade to any 1/10 Traxxas vehicle currently powered by the Titan 12T or Stinger 20T motor. The Velineon power system is a direct fit for 1/10 scale Traxxas Bandit, Rustler, Stampede 2WD, Stampede 4×4, Slash 2WD, Slash 4×4, and 1/10 Rally vehicles.

The key to the Velineon’s extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.

Direct fit in the following 1/10 scale vehicles:

Traxxas Bandit XL-5 & VXL
Traxxas Rustler XL-5 & VXL
Traxxas Stampede 2WD XL-5 & VXL
Traxxas Stampede 4×4 XL-5 & VXL
Traxxas Slash 2WD XL-5 & VXL
Traxxas Slash 4×4
Traxxas 1/10 Rally

Features:

Each component engineered to work with each other to eliminate restrictions and allow maximum power flow

Velineon VXL-3s ESC

• Auto-detects and compatible with brushed, brushless and sensored brushless motors
• Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery packs – two stage low voltage detection for LiPos
• Three driver profiles-Sport, Race and Training Modes
• Gold-plated motor connectors
• Built-in output for optional auxiliary cooling fan (TRA3340)

Velineon 3500 Brushless Motor

• 10-turn 3500kV
• Optimized for extreme power and efficiency in 1/10 scale vehicles
• Ultra high temp neodymium magnets, high-speed ball bearings
• Precision balanced rotor

Traxxas High-Current Connector

• Reverse polarity protection makes backward connections impossible
• Compatible with high-current 12-gauge wire
• Gold-plated wide surface terminals
• Textured surface for easy gripping

Includes

Velineon VXL-3s ESC, Velineon 3500 Brushless Motor and high-current connector

Requires

Installing in vehicle
NiCd, NiMH (4-8 cells) or 2-3 cell LiPo battery with Traxxas connector

Velineon VXL-3s ESC Specifications

Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
Supported motors: Brushed/Brushless/Sensorless brushless
Motor Limit: None
Continuous current: 200A
Peak current forward & reverse: 320A
Braking Current: 320A
BEC voltage 6.0V DC
BEC current: 2.5A w/6-cell NiMH
Transistor type: MOSFET
On-resistance: 0.00075 ohms Max (0.006/8 FETs)
PWM frequency: 12,000Hz
Battery connectors: Traxxas High-Current Connector
Motor connectors: TRX 3.5mm bullet connectors
Motor/battery wiring: 12-gauge Maxx Cable
Input Harness Wire: 26 gauge, 3.9″ (100mm)in length
Low voltage detection: 2-Stage indicators, switchable (on or off)
Thermal protection: 2-stage thermal shutdown
Case size (l/w/h): 2.19″ x 1.54″ x 1.3″ (55 x 39 x 33mm)
Weight: 3.17oz (90g)

Velineon 3500 Brushless Motor Specifications

Type: Sensorless brushless
RPM/volt: 3500 (10-turn)
Magnet type: Ultra High-Temperature, sintered neodymium
Connection type: TRX 3.5mm bullet connectors
Wire Size: 12-gauge Maxx Cable w/solder tabs
Current Ratings: 65A constant; 100A peak/burst
Max RPM: 50,000
Diameter: 1.42″ (36mm) (540 size)
Length: 2.165″(55mm)
Weight: 8.75oz (248g)
