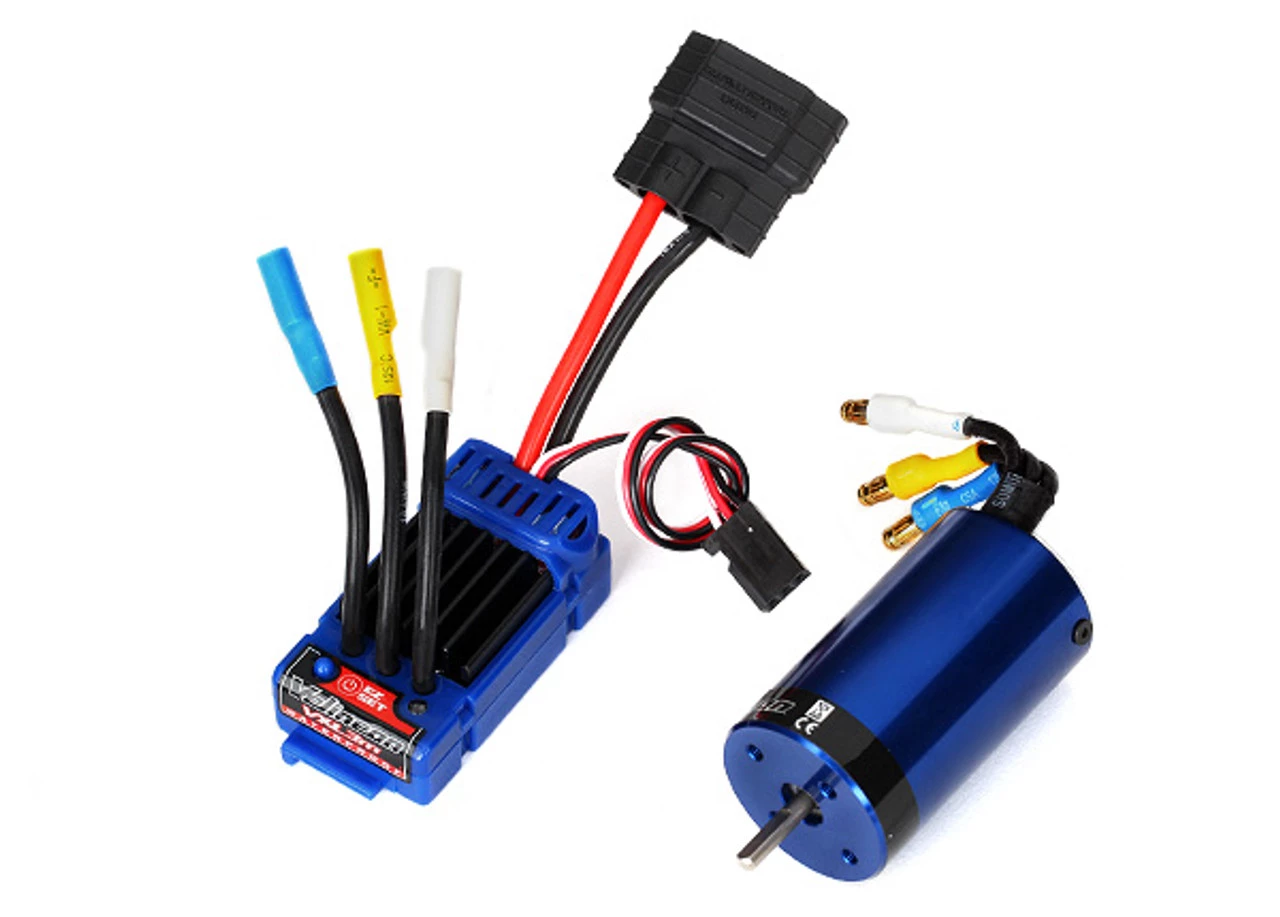

Traxxas Velineon VXL-3m 1/16 Scale Brushless Power System

This is the Traxxas Velineon VXL-3m Brushless Power System for use in Traxxas 1/16 Scale vehicles. This will not fit 1/10 scale vehicles.

This motor may require a different motor mount than stock if you currently have a vehicle with a 550 motor.

The ultimate upgrade! The key to the Velineon’s extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 380 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.

Specifications
VXL3m ESC:
Input Voltage: 6-12 cells NiMH, 2S to 3S LiPo
Motors: Sensorless Brushless
Motor Limit: None
Continuous Current: 52A
Peak Current: 326A
BEC Voltage: 6.0Volts DC
Transistor Type: MOSFET
On-Resistance: 0.0005 ohms
PWM Frequency: 12,000Hz
Weight: 38g (1.34oz)

Motor:
Type: Sensorless Brushless
RPM/Volt: 4000 (8-turn)
Current Ratings: 25A constant/50A burst
Max RPM: 50,000
Weight: 140g (4.94oz)
Length: 48.15mm (1.9″)
Diameter: 28mm (1.1″)
Shaft Diameter: 2.7mm (0.11″)

For use with:
1/16 E-Revo Brushed
1/16 E-Revo VXL Brushless
1/16 Ford Fiesta
1/16 Ford Mustang Boss 302
1/16 Grave Digger
1/16 Kyle Busch Truck
1/16 Rally VXL
1/16 Slash 4×4
1/16 Summit
