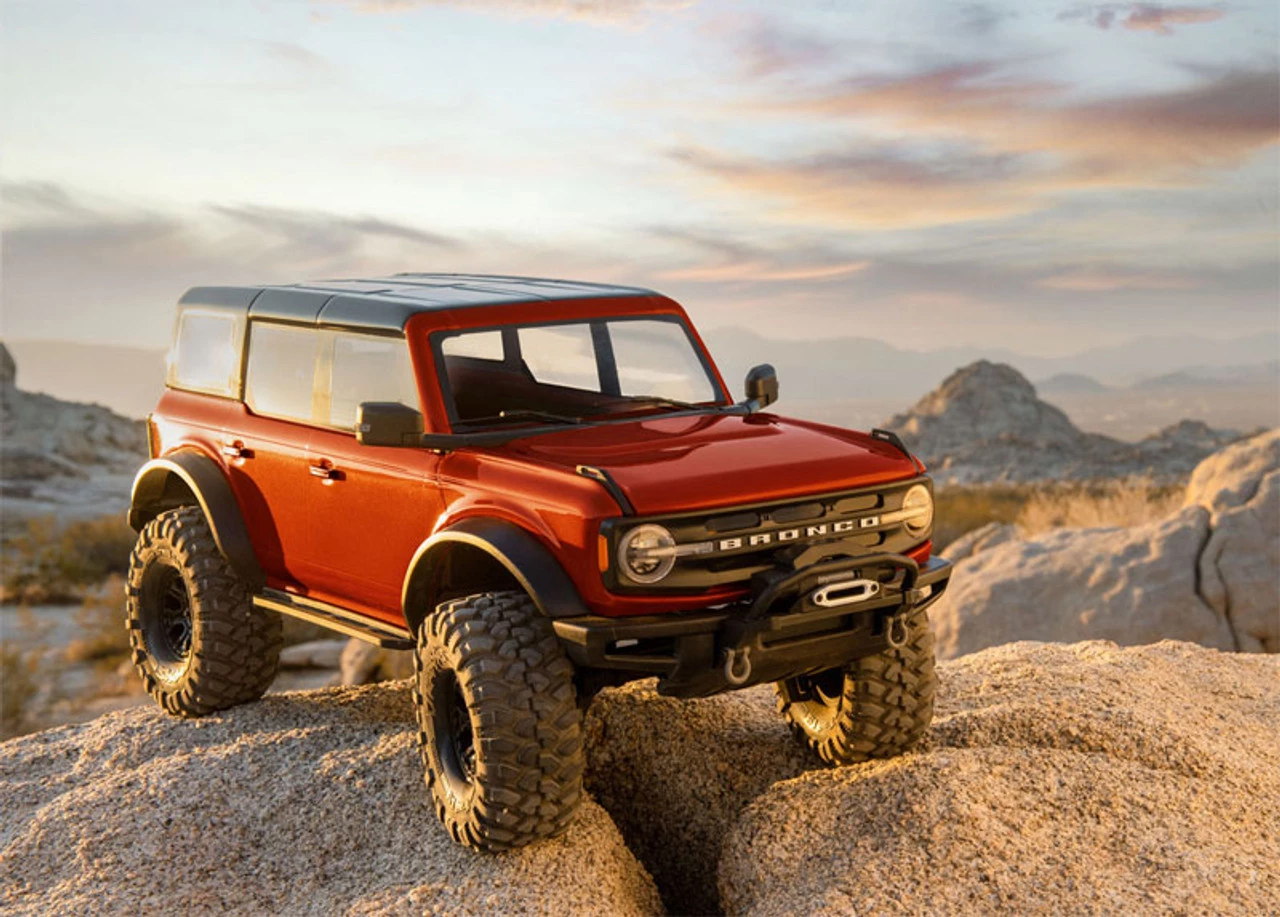

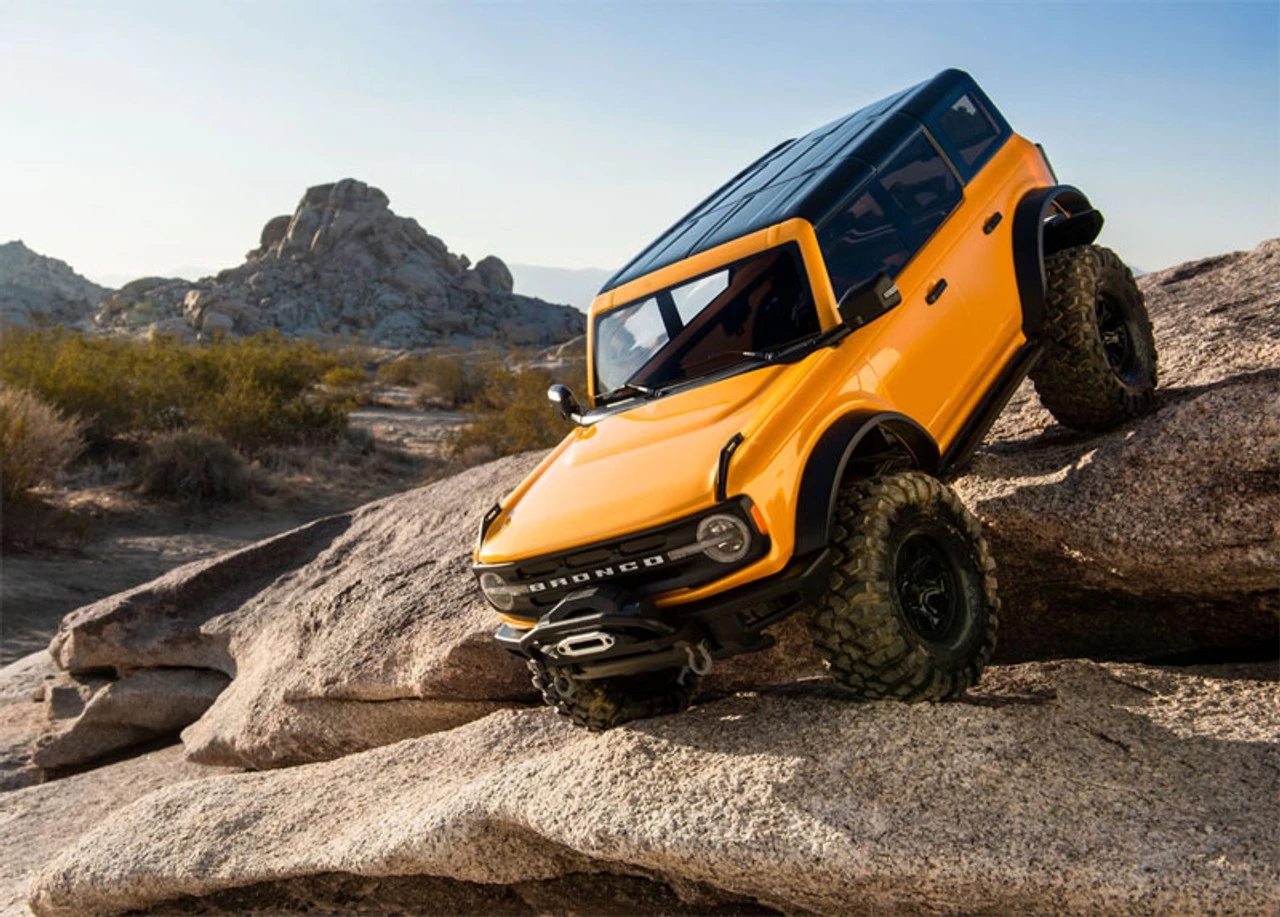

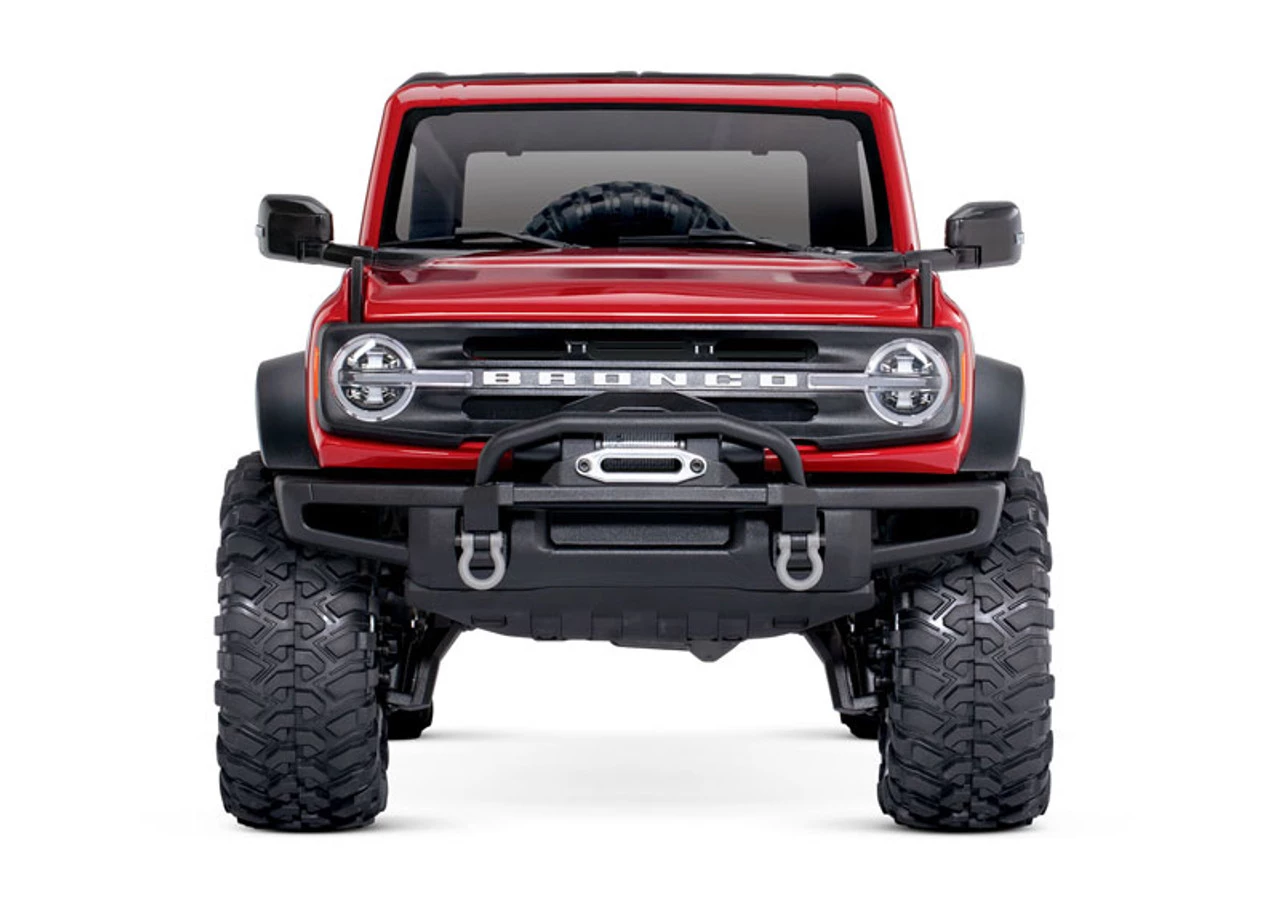

Traxxas TRX-4 2021 Ford Bronco 4WD RTR Crawler Trail Truck: W/FREE WINCH KIT #8855 Shadow Black

This is the Traxxas TRX-4 2021 Ford Bronco 4WD Ready-to-Race Scale Rock Crawler and Trail Truck with TQi 2.4GHz radio system, XL-5 HV speed control, and a Titan 21T 550 motor. The TRX-4 brings a host of new features to the scale RC truck world, now available with the 2021 Ford Bronco look!

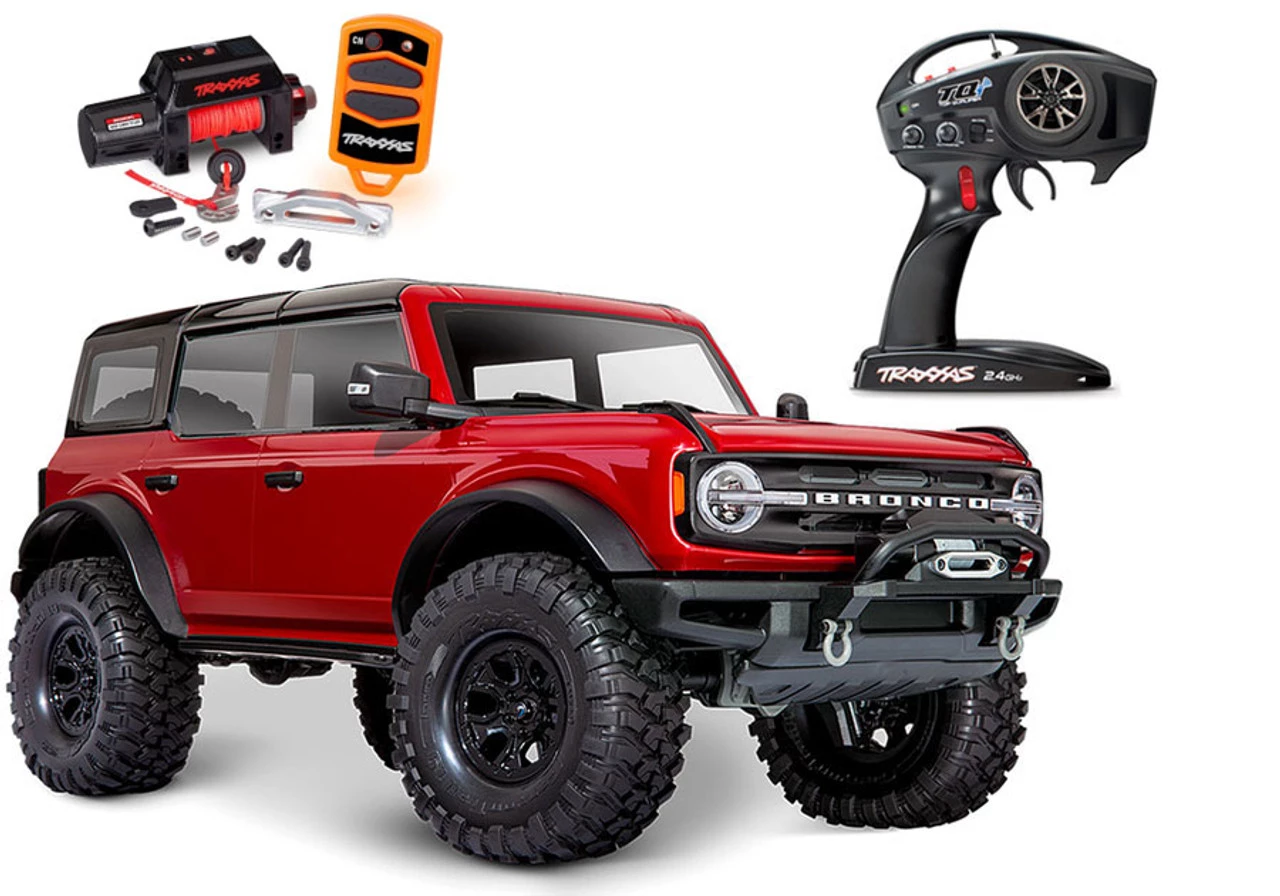

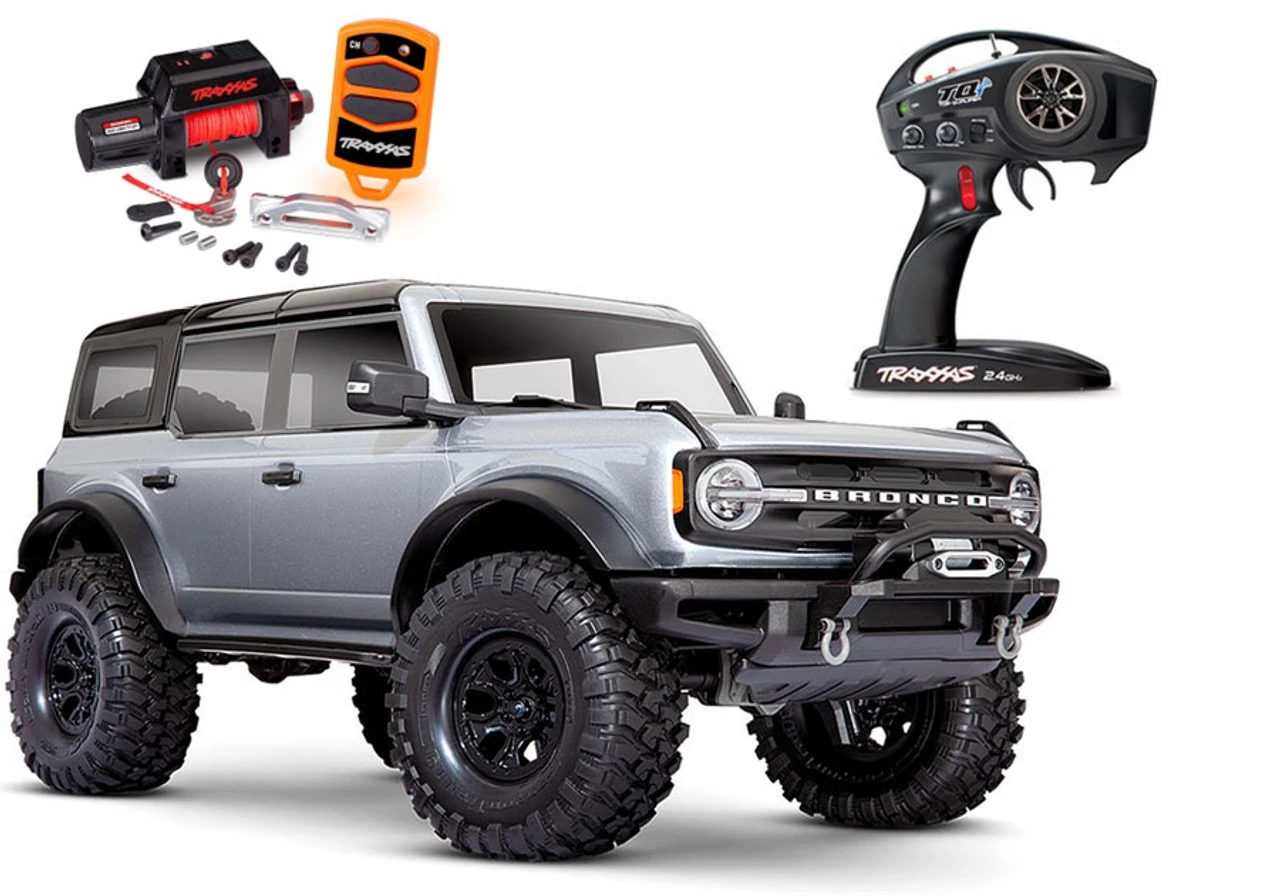

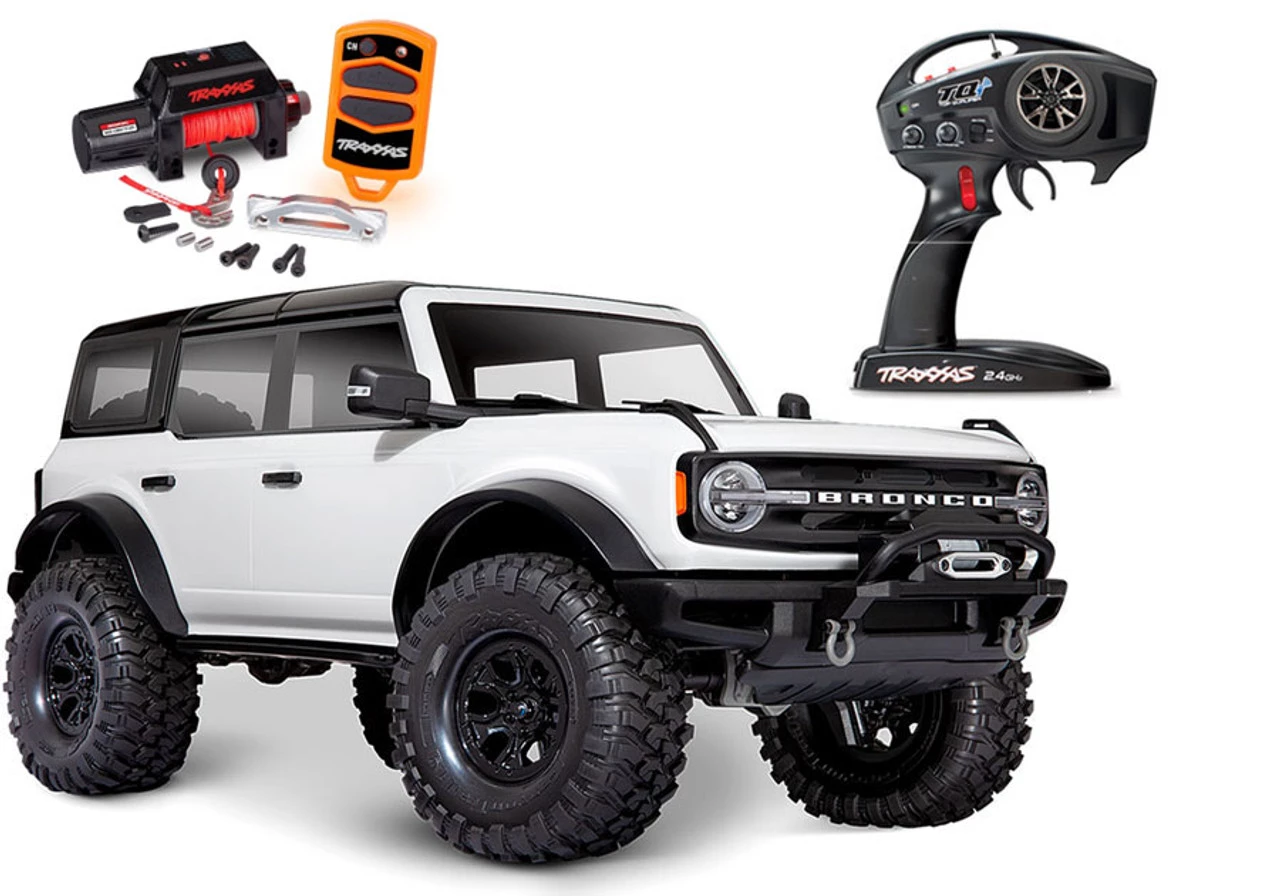

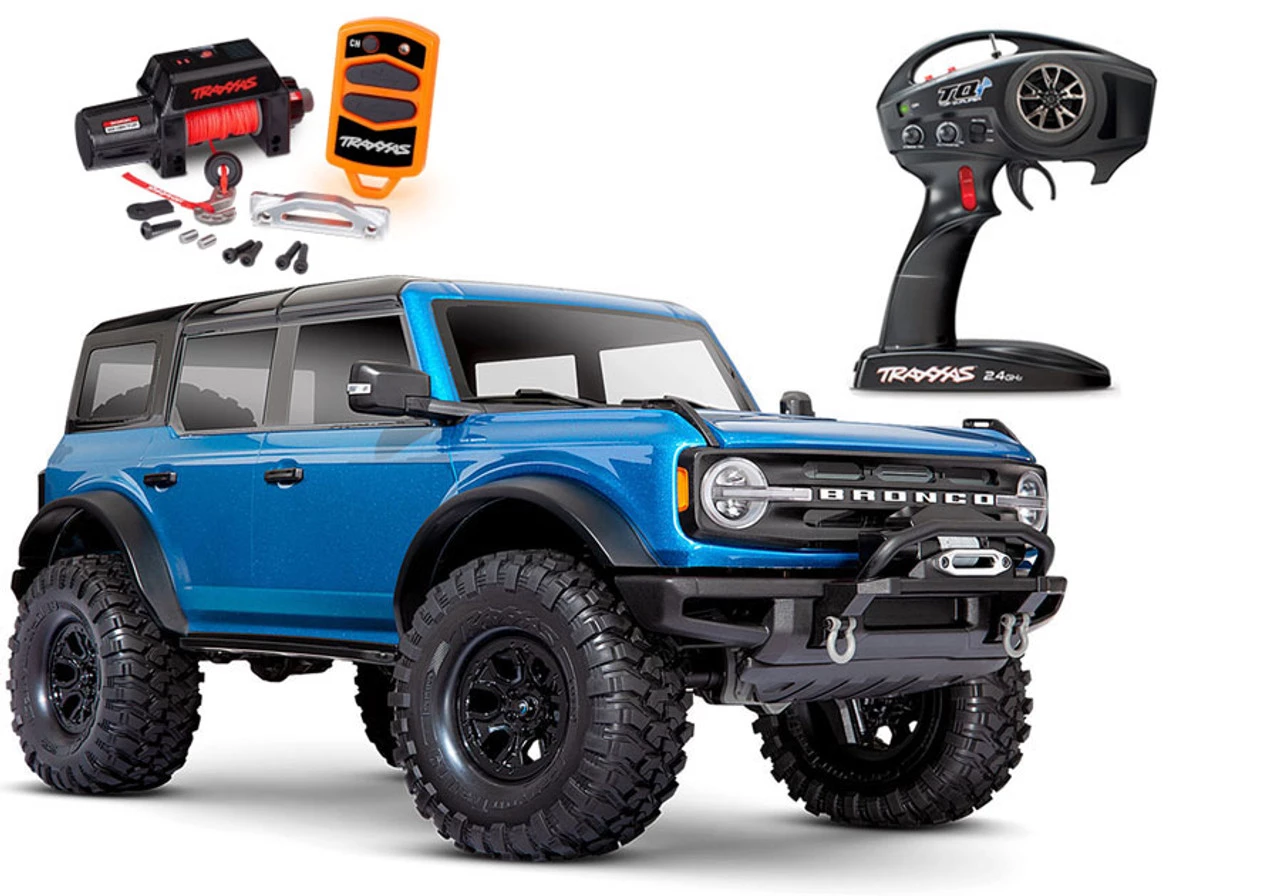

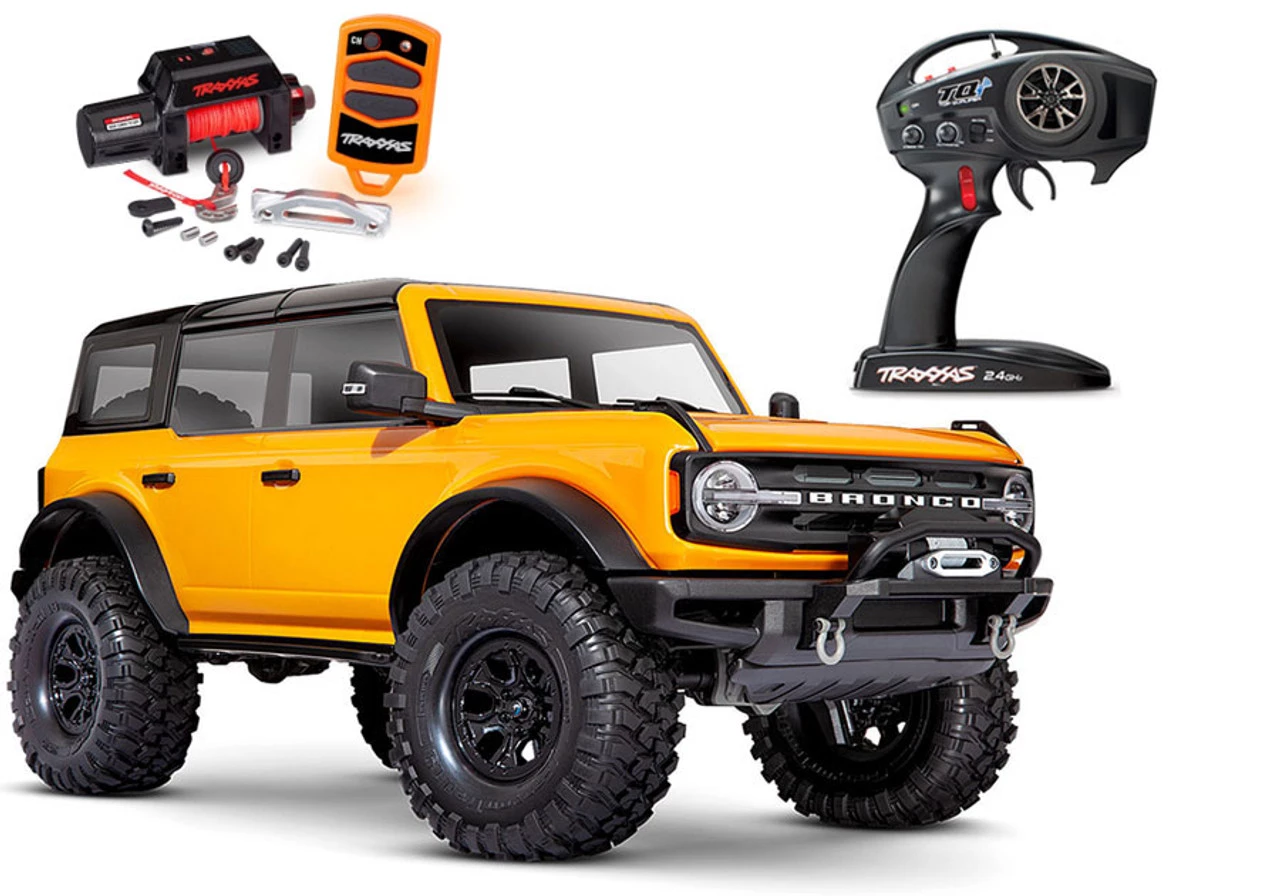

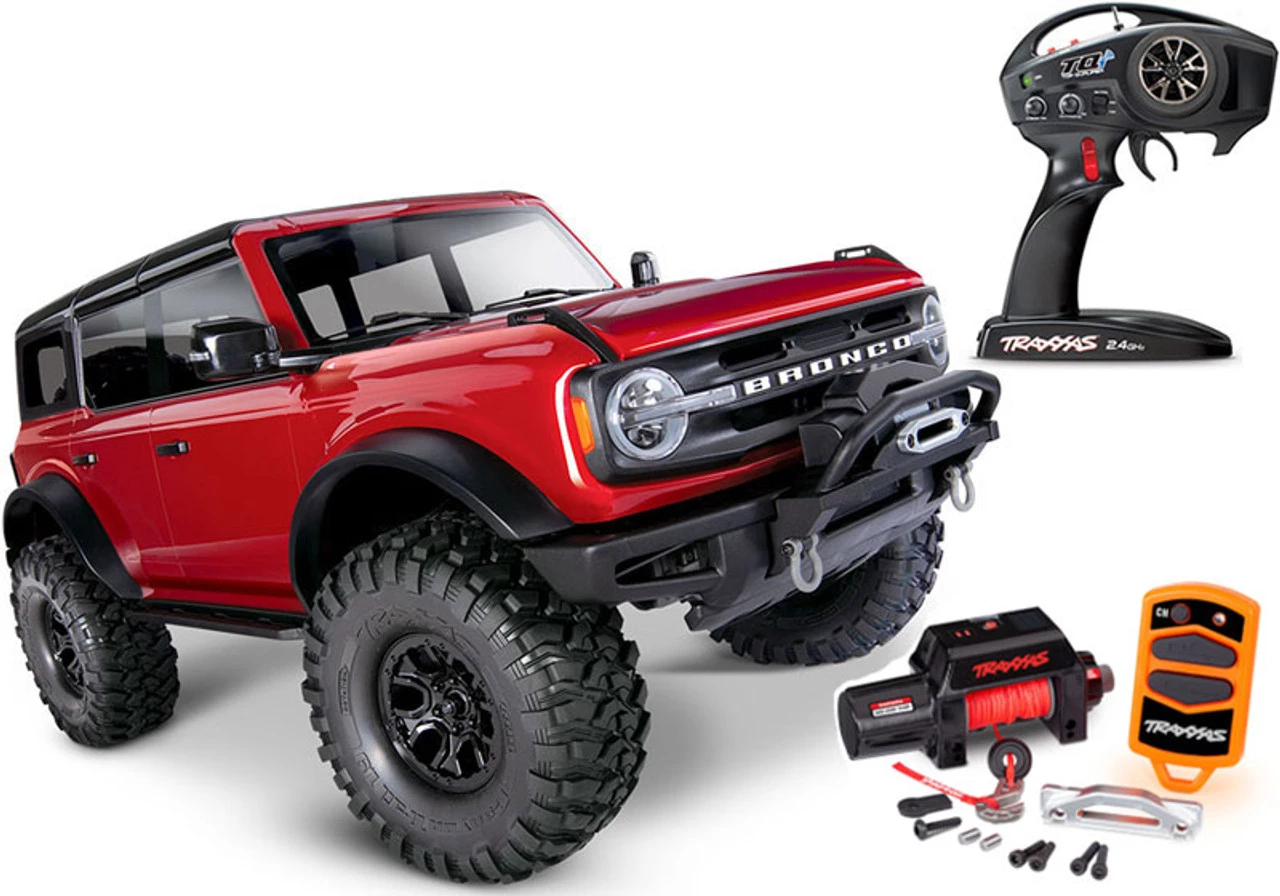

INCLUDED BONUS FREE ITEM (#8855) – Traxxas Pro Scale Winch Kit with Wireless Controller for TRX-4 and TRX-6 ($99.95 Value)

Requires: Battery and charger – see recommended items at bottom

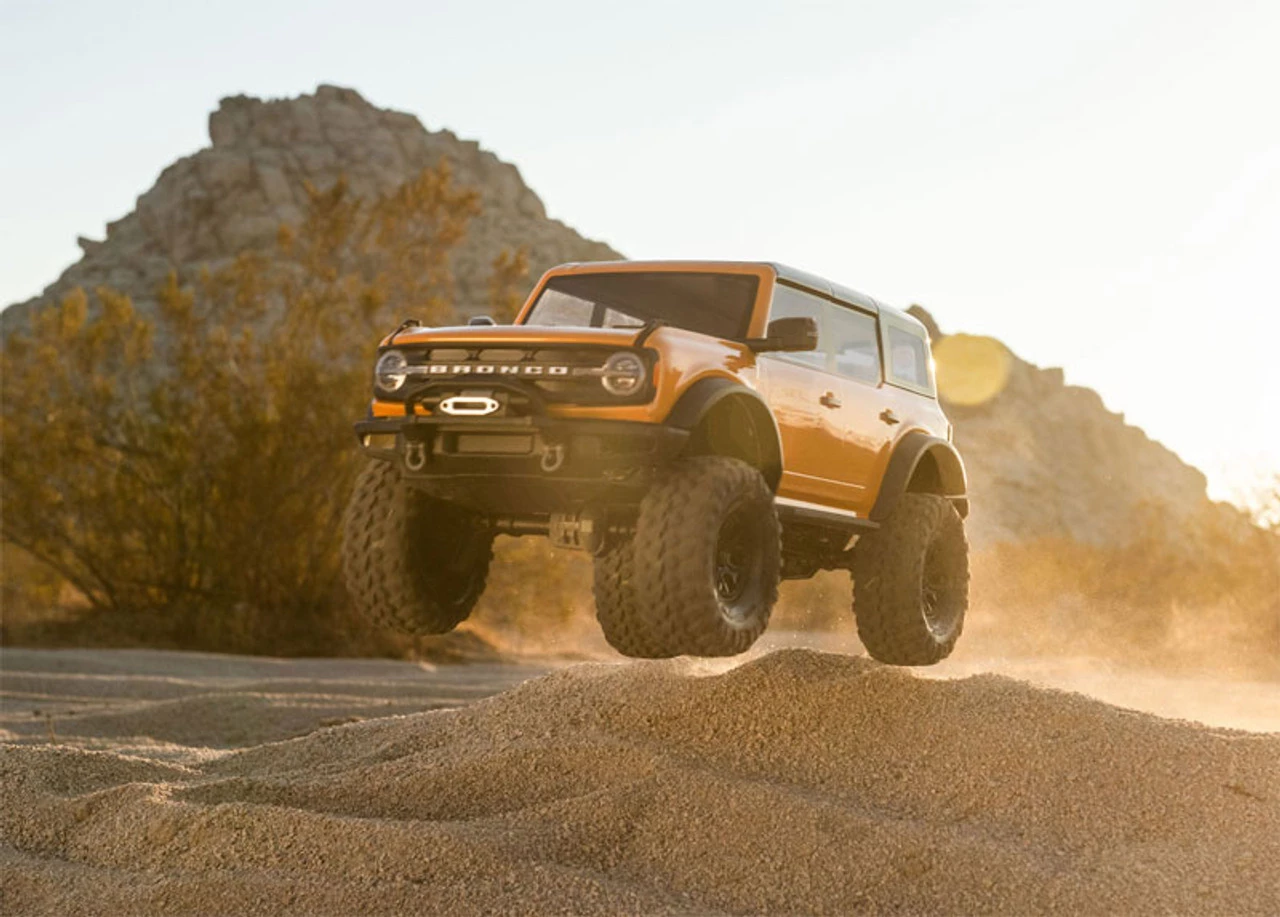

The legend is back.  After 25 years, the Bronco has returned as Ford’s top performing 4×4 and America’s most sought-after SUV.  Traxxas has captured the early-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4.

Radically innovative technology combines with precision engineering to create a completely new breed of crawler. Injection-molded door handles, mirrors, and fender flares plus a functional spare tire deliver incredible realism. Unique “Trail Sights” extend to the LED-ready grille, and rugged replica bumpers feature a fairlead, tow hooks, and receiver hitch. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you!

Traxxas TRX-4 Features

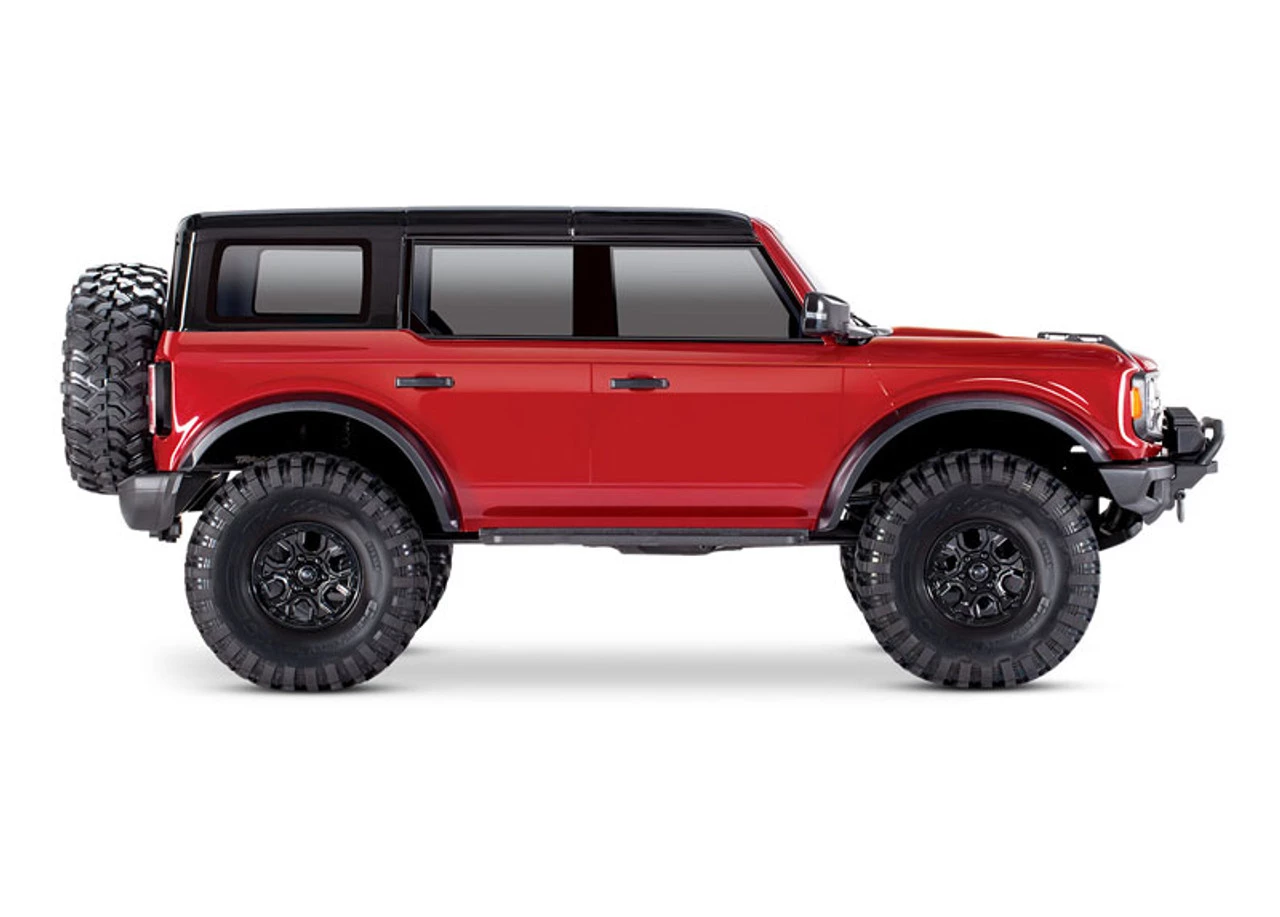

• Officially Licensed 2021 Ford Bronco Body
• Two-tone paint with black roof and clear windows
• LED-ready headlights and tail lights with multi-function capability
• Scale details
• Black molded grill with white Bronco log
• Replica hood cowl w/wipers and folding mirrors

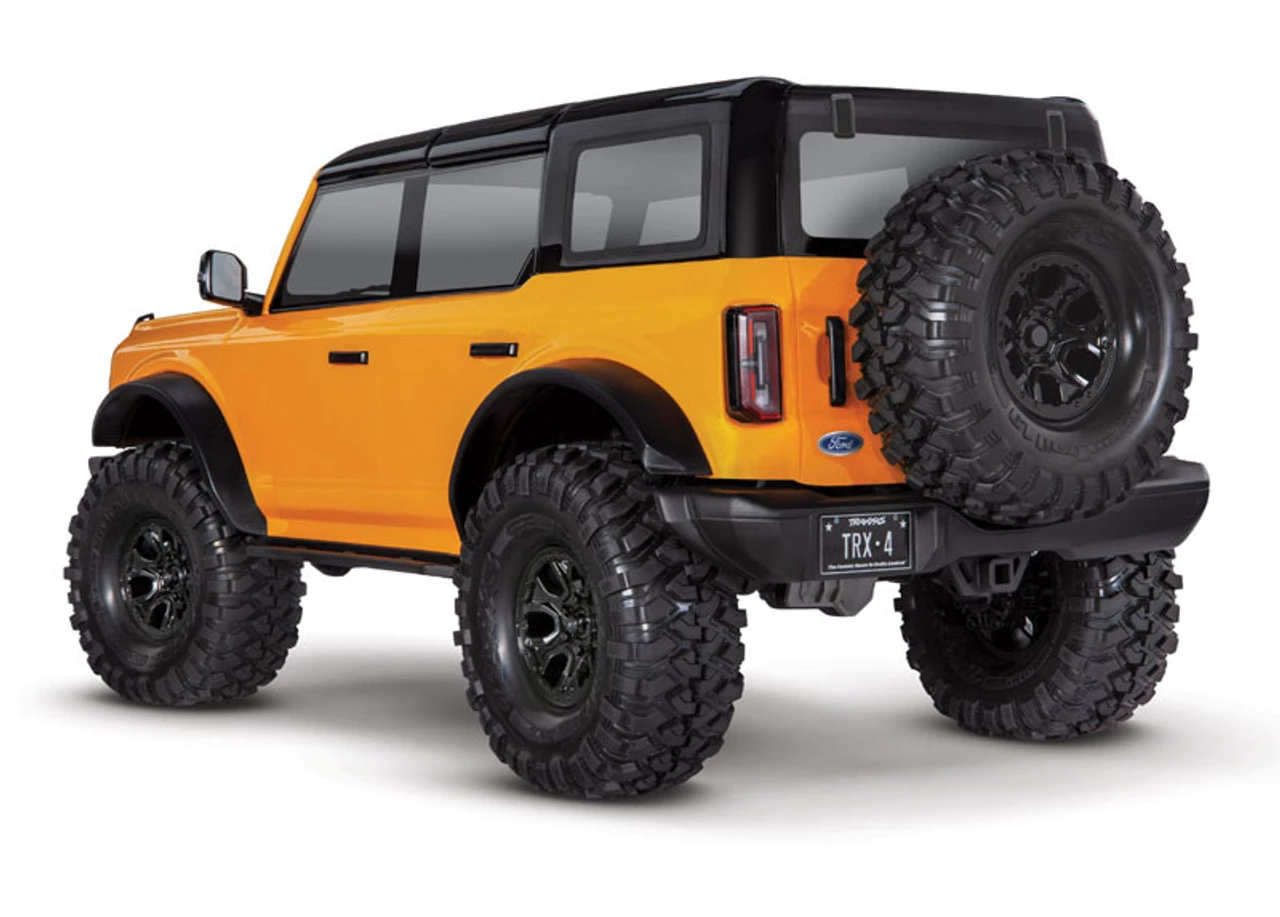

• Replica spare tire mount
• Replica door handles
• Tough PVC fender flares, wheel wells, and floor pans

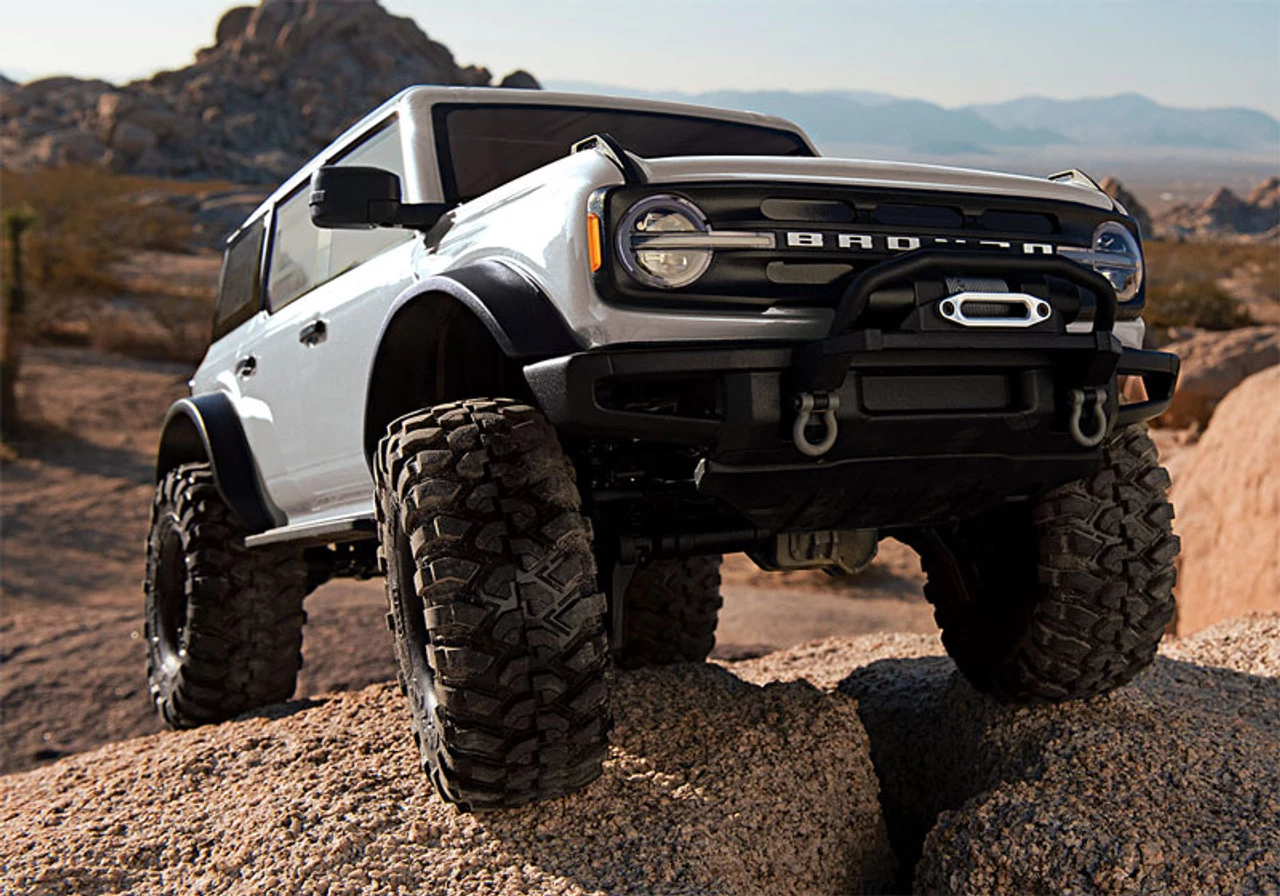

• Front and rear Bronco bumpers with skid plate and replica winch
• Clipless Body mounting
• Clipless design for smooth body appearance
• Rugged internal body cage for added rigidity
• Body details mount directly to internal frame
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake / no reverse
• Training Mode – 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode – forward / instant reverse – no neutral with 100% hill holding brake
• Traxxas EZ-Set one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3s LiPo (7.4-11.1V)
• Two stage low voltage protection (LVD)
• Motor
• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• Rigid Steel Frame
• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Drivetrain
• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Chassis mounted 2075X metal gear digital servo
• Superior 45-degree steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

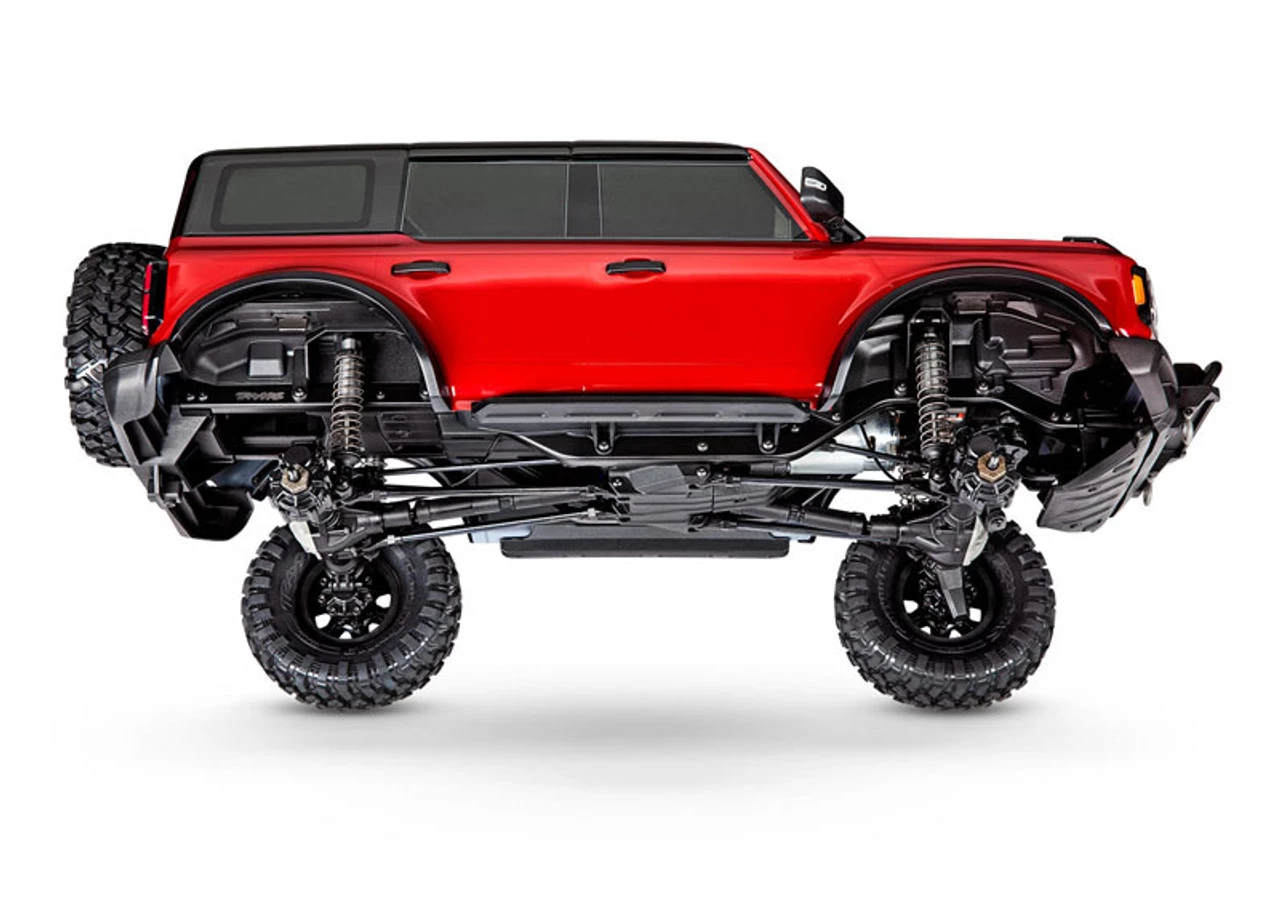

• Suspension
• Front – 3 link with panhard
• Rear – Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
• Replica black 2021 Bronco wheels
• Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12mm steel hex
• Transmitter
• TQi 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

TRX- 4 Specifications

Length: 22.98 inches (584mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lbs (2.91kg)
Height: 9.4 inches (239mm)
Wheelbase: 12.8 inches (324mm)
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Approach Angle: 52 degrees
Departure Angle: 49 degrees
Breakover Angle: 58 degrees
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal
Transmitter: TQi 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

Requires

4 AA batteries for transmitter
6-7-cell NiMH flat pack or 2-3S LiPo battery
