Traxxas Stampede 4×4 XL-5 Kit with Electronics

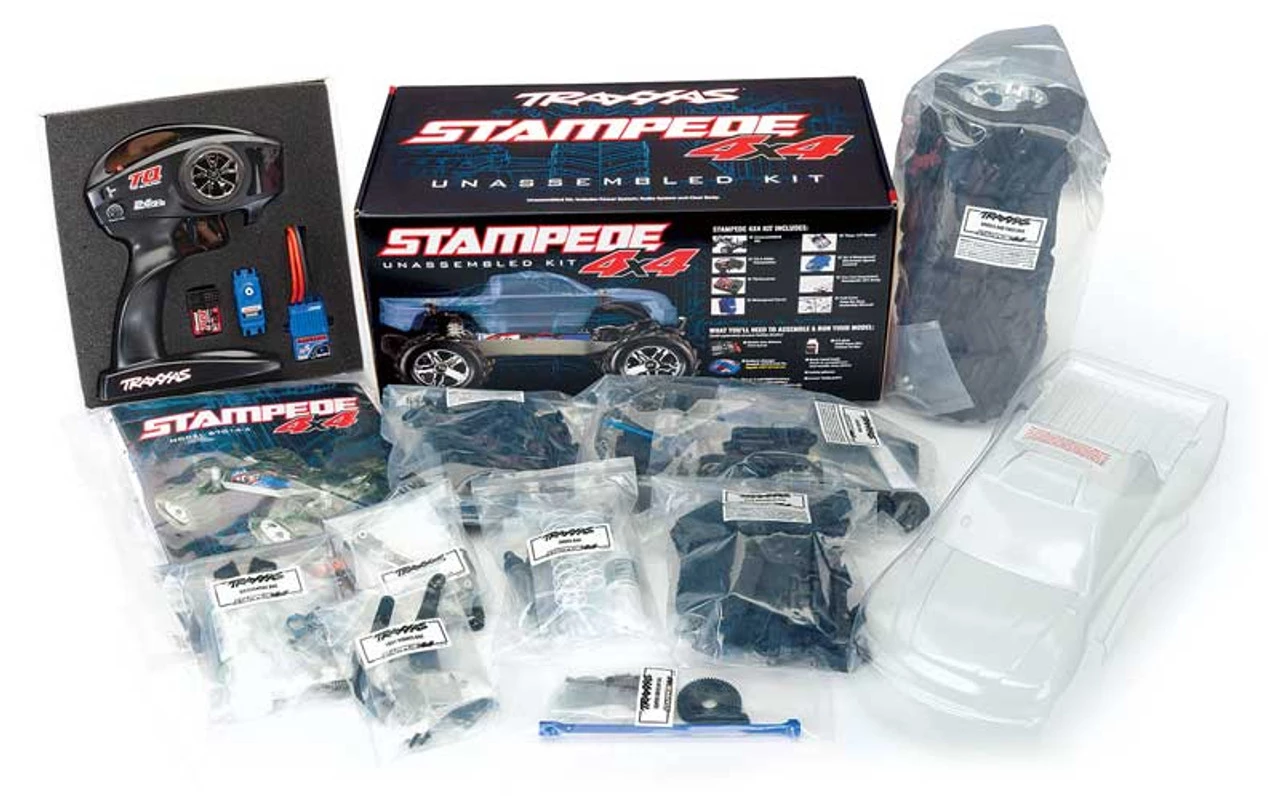

This is the Traxxas Stampede 4×4 XL-5 Kit with Clear Body, XL-5 ESC, Titan 550 12T motor, TQ transmitter, receiver, and steering servo. This kit requires assembly, painting of the body, a battery and charger. The new Stampede 4×4 XL-5 kit with electronics is the perfect way to learn the mechanics of an R/C truck, or help teach someone new to the hobby.

Designed for Fun
Whether you’re going through muddy water crossings or just having fun crushing your buddies’ cars, the Stampede 4X4 just doesn’t know when to quit. The Stampede 4X4 is overbuilt and Traxxas Tough to withstand all the 4-wheel drive monster mayhem you can dish out. Its tall, drive-over-anything ground clearance and ultra-tough, long-arm suspension make Stampede 4X4 feel nearly indestructible. Chrome All-Star 2.8″ wheels give Stampede 4X4 aggressive style, and soft Chevron Maxx tires deliver true multi-terrain capability.

Easy to Follow Assembly Instructions

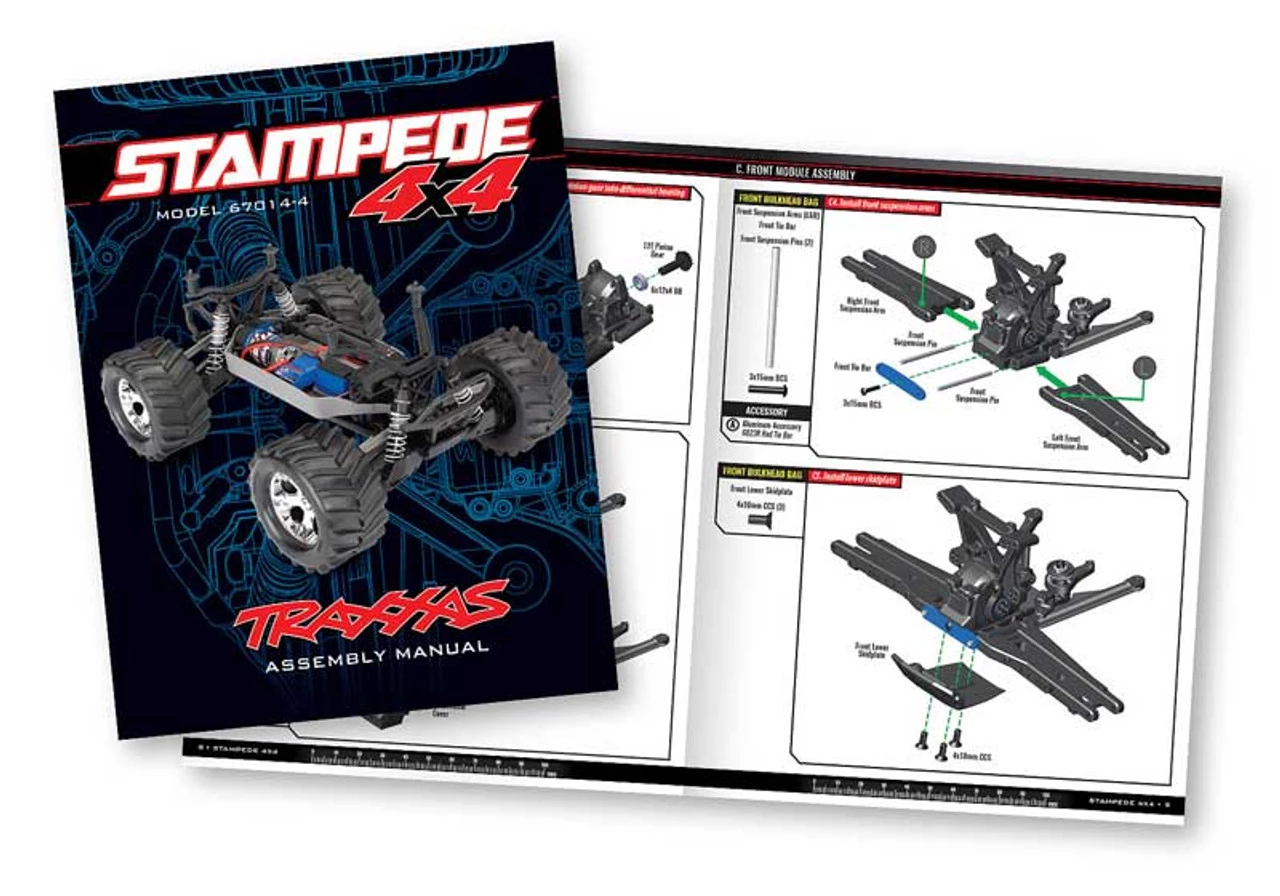

The Stampede 4X4 Assembly Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and in the dirt with the new Stampede 4X4 kit.

Features

• Unassembled kit
• Full-time 4WD, reaches speeds over 30mph (w/optional 21T pinion)
• TQ 2.4GHz 2-channel radio system
• Sealed, oil-filled differentials
• Waterproof electronics for all-weather driving excitement
• Powerful Titan 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5 Electronic Speed Control
• Speed control and receiver are securely screwed to the chassis
• Equipped with patented Traxxas High-Current Connectors
• High-torque Waterproof Traxxas steering servo (#2056)
• Efficient telescoping heavy-duty U-joint driveshafts
• Bellcrank steering system with integrated servo saver
• Modular simplicity, fiber-composite monocoque chassis
• Gray chassis components offer a high-contrast tech look
• Easy access battery compartment
• Drive-over-anything ground clearance and forward wheel placement
• Long-travel suspension
• Fully adjustable Ultra Shocks with X-ring technology
• High-quality hex hardware throughout
• Efficient rubber-sealed ball bearings
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Chrome All-Star 2.8″ wheels
• Chevron Maxx multi-terrain tires with high-performance foam inserts
• Full line of genuine Traxxas accessories available
• Unparalleled Traxxas support and parts availability

Chassis Optimized for Monster Fun

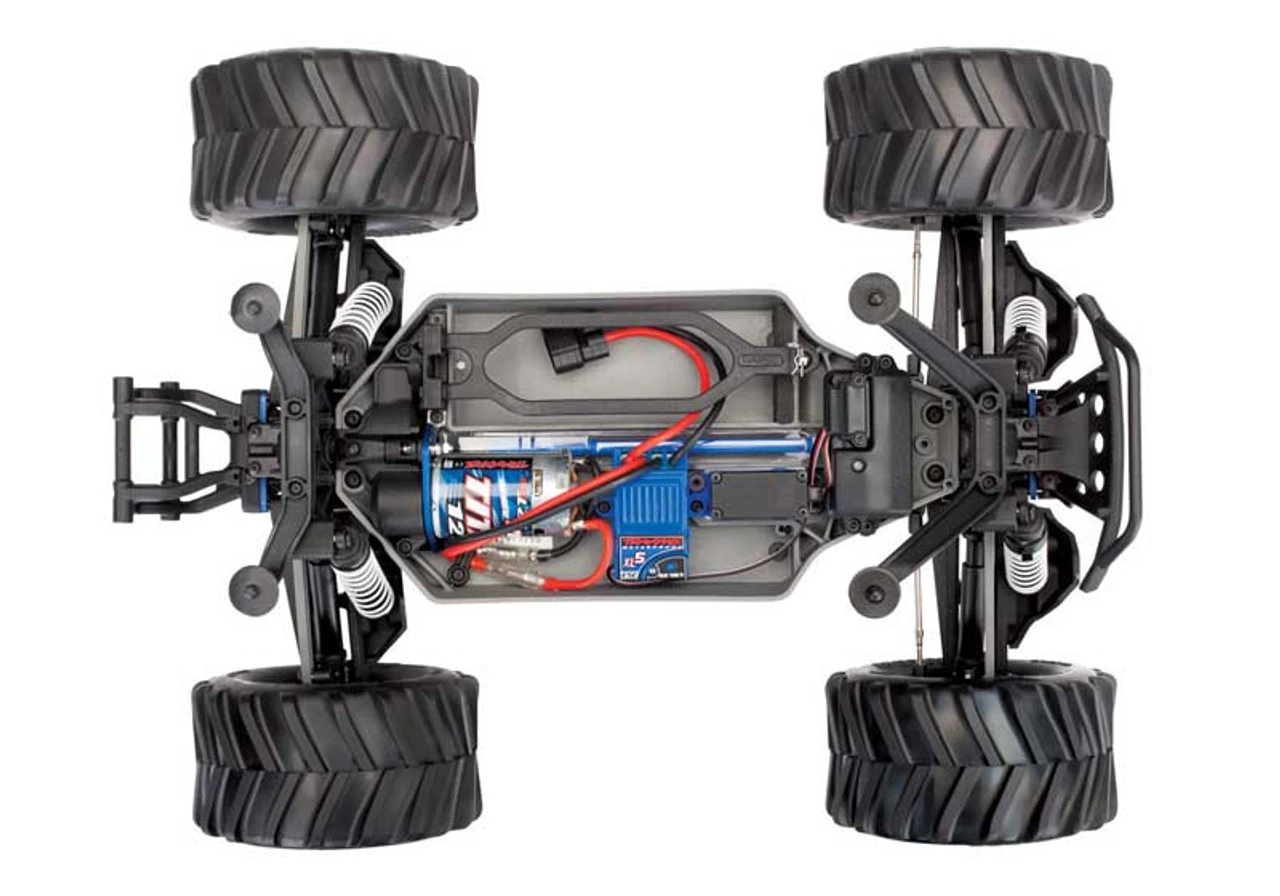

Stampede 4X4 is built on the proven performance of the advanced shaft-driven 4WD system and innovative modular design of the award-winning Slash 4X4. The chassis fully integrates the electronics and battery compartment for an efficient and compact layout, and maintains the high center ground clearance that gives Stampede its monster stance and high-riding look. The extra clearance drastically increases the off-road versatility that allows you to tackle rougher terrain and bigger obstacles. The Stampede 4X4 feels planted and secure at speed, even on pavement and in other high-grip conditions. Stampede 4X4 is 100% monster truck, but it handles like a racing machine!

Modular Simplicity
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. Modular design allows the entire front section to be removed with just five screws, and the rear assembly with just four screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.

Ultra Efficient Shaft-Driven 4WD
Stampede 4X4 uses just three gear meshes to drive all four wheels, eliminating the need for a multi-gear transmission. The highly efficient drivetrain spins effortlessly on rubber-sealed ball bearings, and is integrated seamlessly into the unique chassis for optimum performance and easy maintenance. There are no dogbones to wear, no drive cups to wobble. A single center driveshaft connects the front and rear drive assemblies for maximum power transfer. The shaft runs perfectly straight and true and offers superior durability. A clear cover shows off the high-tech look while keeping dirt and debris away from the shaft.

Specifications

Length: 15.63 in (397mm)
Width: 13.39 in (340mm)
Height: 8.94 in (227mm)
Ground Clearance: 2.95 in (75mm)
Wheelbase: 10.83 in (275mm)
Weight: 90.46 oz (2.57kg)
Drivetrain: 4WD
Tire Type: Chevron Maxx 2.8 in
Motor: Titan 550 12T
Speed Control: XL-5
Radio: TQ 2.4GHz
Gear Pitch: 32
Wheel Size: 2.8 in (72mm)

Requires:
7-Cell NiMH or 2S LiPo battery
Compatible charger
Basic hand tools
Polycarbonate body paint
Tire Glue
