Tekin 1/8 RX8 Gen3 w/T8 Gen3 4030 1900kV

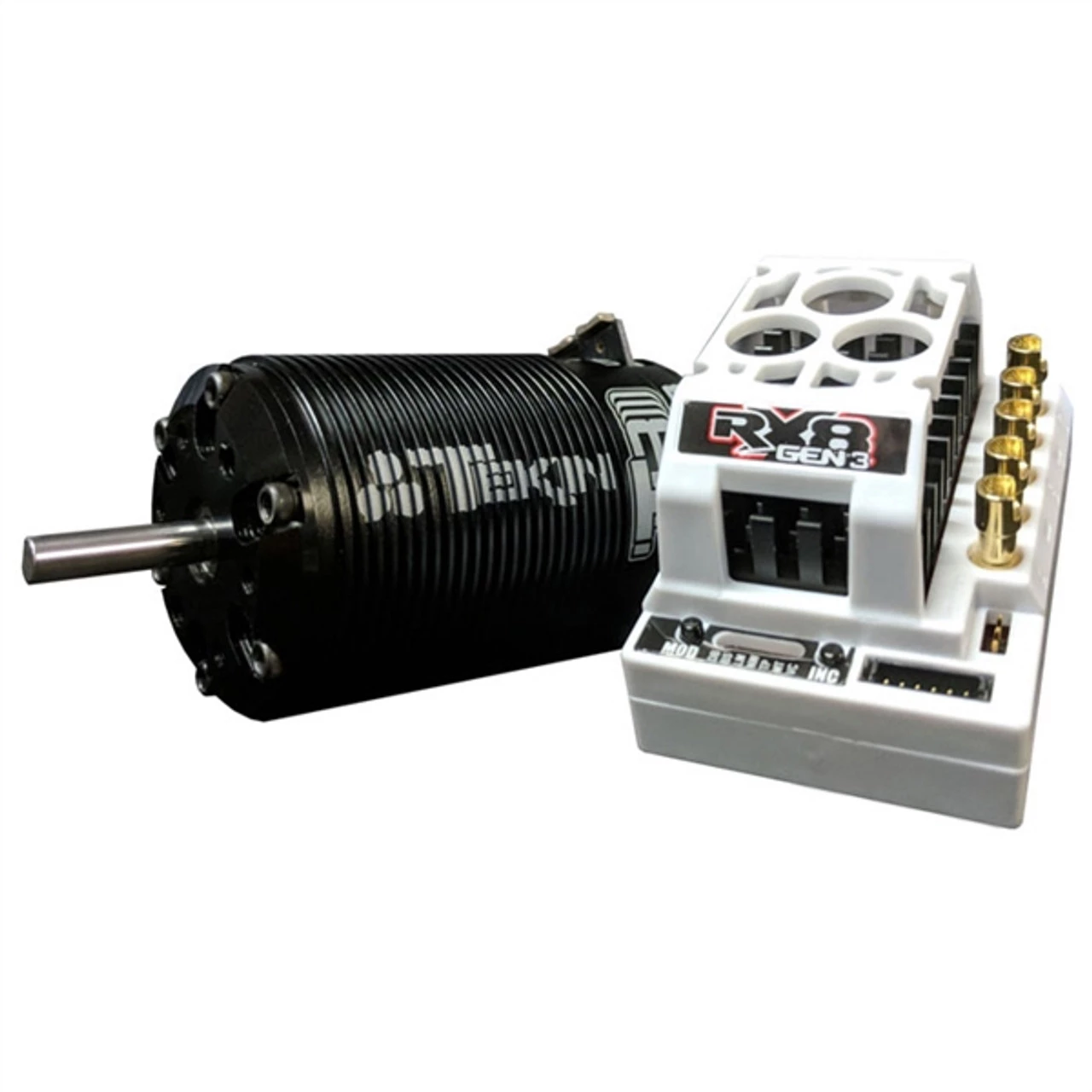

This is the Tekin RX8 Gen3 Brushless Dual Mode ESC Combo with the T8 Gen3 4030 1900kV motor.

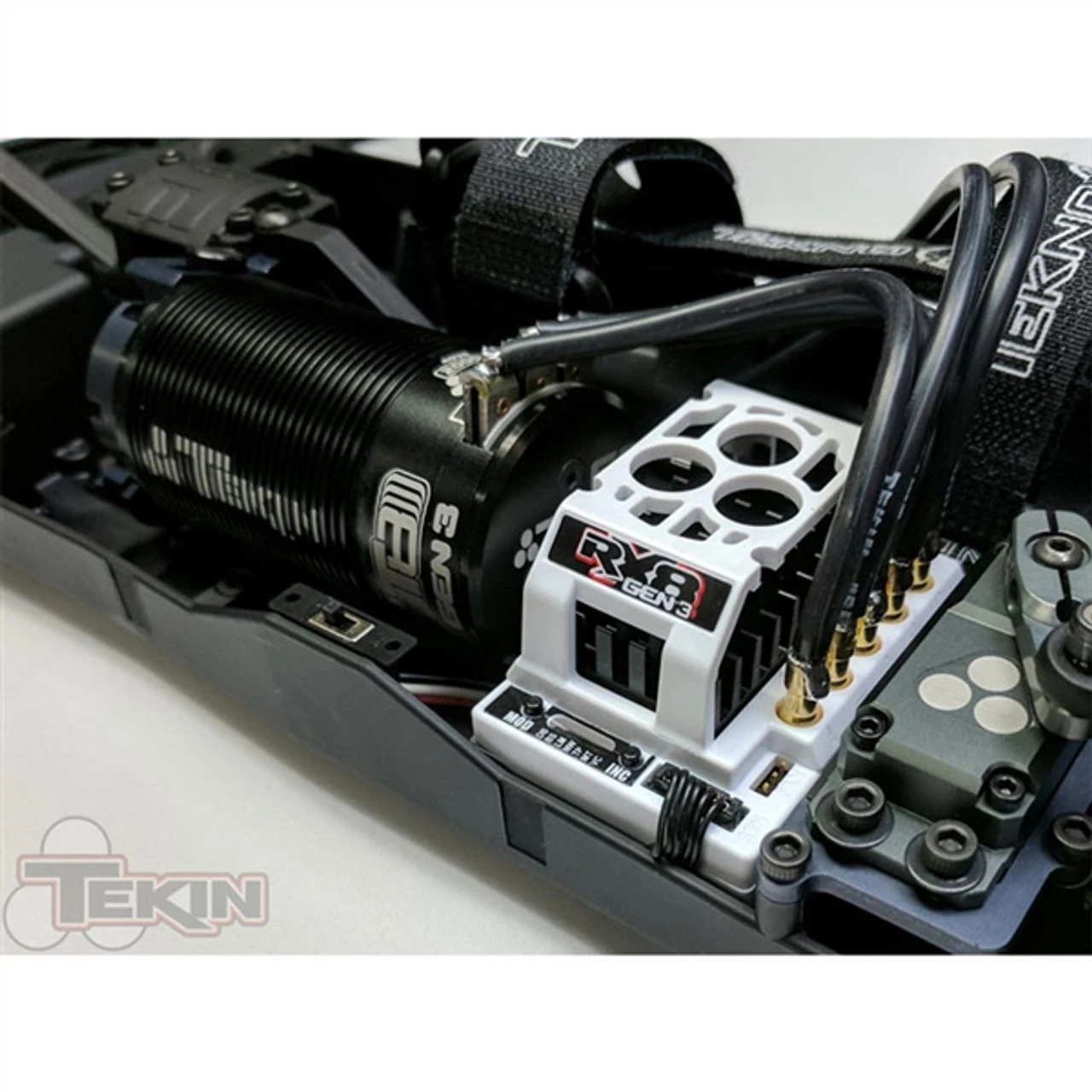

Tekin’s RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin’s D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security.

Tekin’s T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin’s D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.

ESC Features

• New HD Gold-plated Solder Posts for Easy Soldering
• Multi-Fin High Efficiency Heat Sink and Optional High RPM Cooling Fan
• QuickTune One Touch Programming
• Adjustable Torque Control *
• Adjustable Throttle and Brake Frequencies *
• HD High Voltage Programmable BEC *
• HotWire Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

* requires HotWire sold separately.

ON BOARD QuickTune PROGRAMMABLE FEATURES
DB – Drag Brake (13 steps)
BS – Brake Strength (13 steps)
LM – Torque Limiter (7 steps)
NW – Neutral Width (13 steps)
TP – Timing Profiles 5 Preset – 2 Custom*
MT – Motor Type
Brushless Modes – FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes – FWD Only / FWD-REV / FWD-REV Delay
VC – Voltage Cutoff : 2S, 3S, 4S, 5S, 6S, Custom*

* requires HotWire sold separately.

HOTWIRE PROGRAMMABLE FEATURES
Update ESC Firmware
Create, Save, Load and Share Custom ESC Profiles
Drag Brake (0-100 steps)
Brake Strength (0-100 steps)
Brake Minimum (0-30 steps)
Active Braking (0-6 steps)
Brake Frequency (750hz – 12kHz)
Throttle Minimum (0-30 steps)
Throttle Frequency (2kHz – 12kHz)
Torque Limiter (0-10 steps)
Reverse Speed (0-100 steps)
Reverse Delay (0-2seconds)
Neutral Width (0-100 steps)
Push Control (0-100 steps)
Timing Profiles 5 Preset – 2 Custom
Dual Drive Mode
Motor Type
Brushless Modes – FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes – FWD Only / FWD-REV / FWD-REV Delay
Voltage Cutoff – 2S, 3S, 4S, 5S, 6S, Custom Per Cell
Fan ON/AUTO Modes

Motor Features

• 4 Pole 12 Slot High Torque Motor Design
• 1:8 Scale Chassis Specific
• ROAR Legal
• CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can
• Neodymium Sintered Magnets
• Precision Engineered for Maximum Energy Conversion
• High Purity Copper Windings Maximize Conductivity and Efficiency
• Low Resistance, High Power Solder Tabs
• Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
• Anodized End-bell plates maximize corrosion and wear resistance
• High RPM ABEC-5 Precision Bearings
• Oversized Front Bearing adds Durability
• Rebuild-able Design
• Designed to be paired with the RX8 GEN3 ESC

Specifications

ESC Specs
Controls: Forward/Brake/Reverse
Max Current: 300amps per phase*
Burst Current: 1000amps per phase*
BEC: 6.0v / 7.4v @ 8amps
Dimensions: 1.5 x 2.2 x 1.4″ / 38 x 55.8 x 35.5mm
Weight: 2.7oz / 76.5g

Motor Specs
Input Voltage: 4S LiPo
Shaft Dimensions: 5mm (.125″) x 19mm
Motor Diameter: 40mm / 1.57″ (42mm / 1.65″ including fin)
Motor Length: 69mm / 2.71″
Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes

*per manufacturer specs
