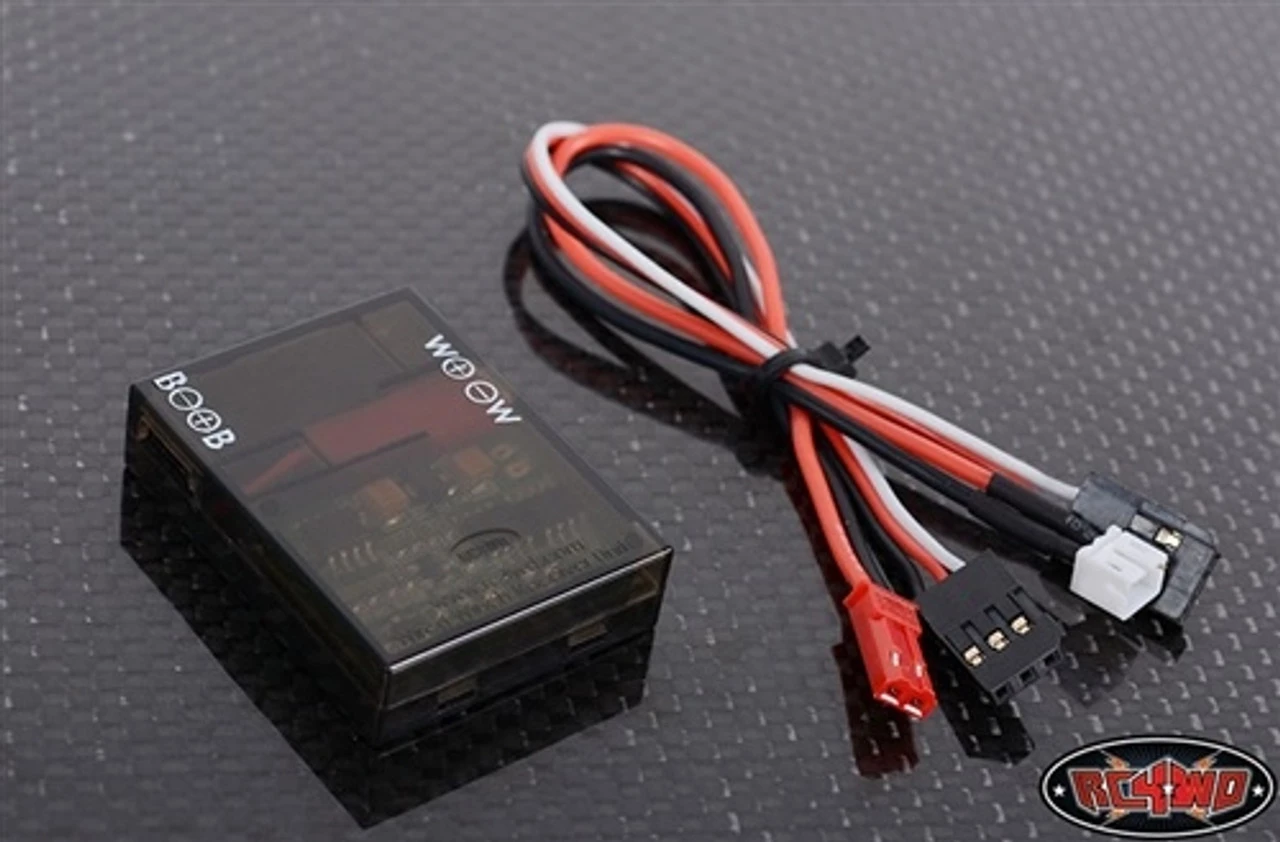

RC4WD Wired Winch Control Unit

This is the RC4WD Wired Winch Control Unit offered to allow operation function from your radio and receiver. This will allow you to control a winch with your remotes third channel. This is recommended for use with the RC4WD Warn 1/10 9.5cti Winch (RCWZS1079).

Specifications:
Receiver
Small Compact Size
Operating Voltage 6V to 11.1V
Requires 3 position Third Channel
Easy Plug and Play
Instruction Included
Length: 1.6in / 41mm
Width: 1.2in / 31mm
Height: 0.39in / 10mm
Weight: 0.35oz / 10g

Wire
Length: 6in / 150mm
Wires Weight: 0.14oz / 4g

Product
30 Day Warranty through RC4WD
Manufactured by RC4WD

What’s Included:
1x Wired Control Unit
1x 6″ Receiver/Receiver Power Wire
1x 6″ Receiver/Winch Control Wire

Requires:
You will need a radio with a third channel to operate this controller. Your third channel needs to be a three position switch (on/off/on). If your radio does not have a three position switch, you can purchase a wireless controller unit instead (RC4ZS1092)

This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty. Some Lipo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery.
