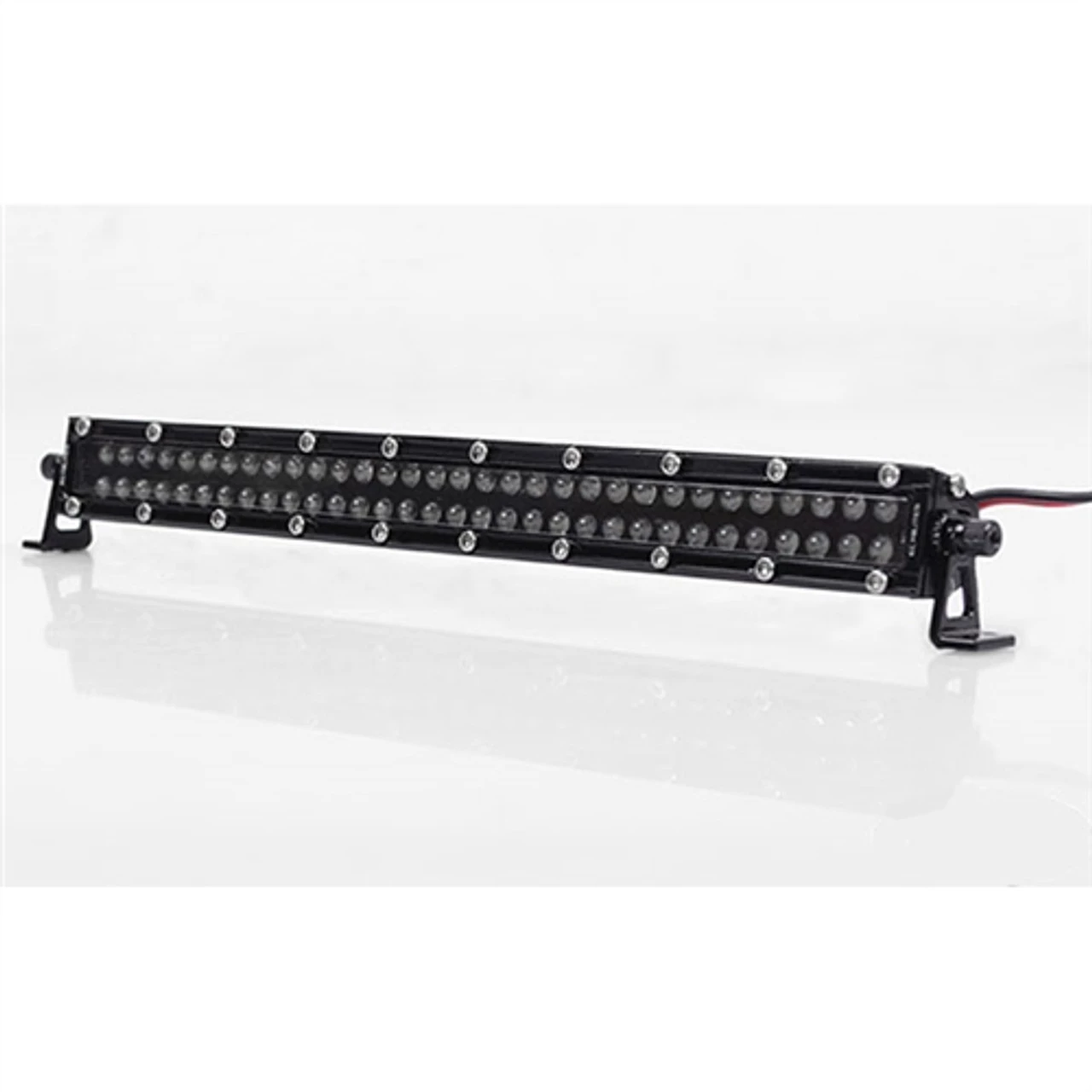

RC4WD 1/10 KC HiLiTES High Performance LED Light Bar 150mm/6″

This is the RC4WD 1/10 Scale KC HiLiTES High Performance 150mm / 6″ LED Light Bar. These have been Officially Licensed by the KC HiLiTES Company. This will make any scale project look better and add much needed lighting. Detail like no other lights out there. We leave our competition in the dark.

Features

• Cast Molded Housing
• Reversible “L” brackets to fit many applications
• Adjustable “L” brackets for rotating light
• 64 Individual LED bulbs
• Super Bright Lighting
• Vented on side to dissipate heat
• Works with up to 11.1v lipo with use of a BEC to regulate voltage below 7.4 volts
• Standard Receiver Plug
• Connects to extra channel on receiver (see notes for voltage recommendations)

Specifications
2mm Mounting Holes
Overall Length: 6.7in / 170.5mm
Light Bar Width: 5.9in / 150mm
Overall Height: 0.82in / 21mm
Light Bar Height: 0.63in / 16.2mm
Weight: 2.43oz / 69g

Max input voltage: 7.4V

Includes
1x RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (150mm/6″)

Notes:
Use medium grade threadlock on “L”bracket nut to prevent loss and to keep the light in position.
While the lightbar comes with a standard receiver plug, this is only for ease of use. The receiver will not typically provide enough power for optimum brightness. If you want the light to be bright, you will need to power it directly from your battery (if 7.4V or less), or use a BEC to get more power to your receiver.
