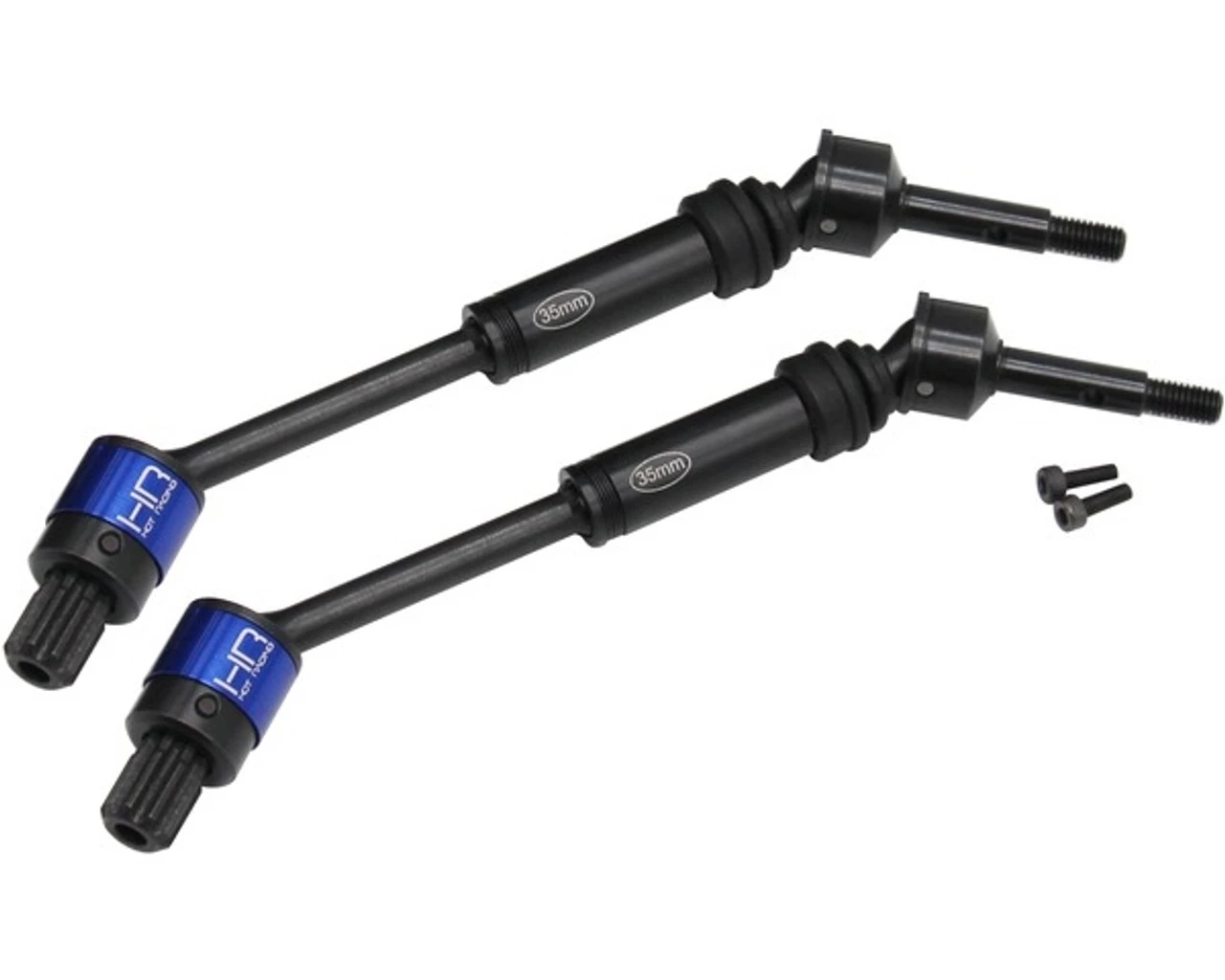

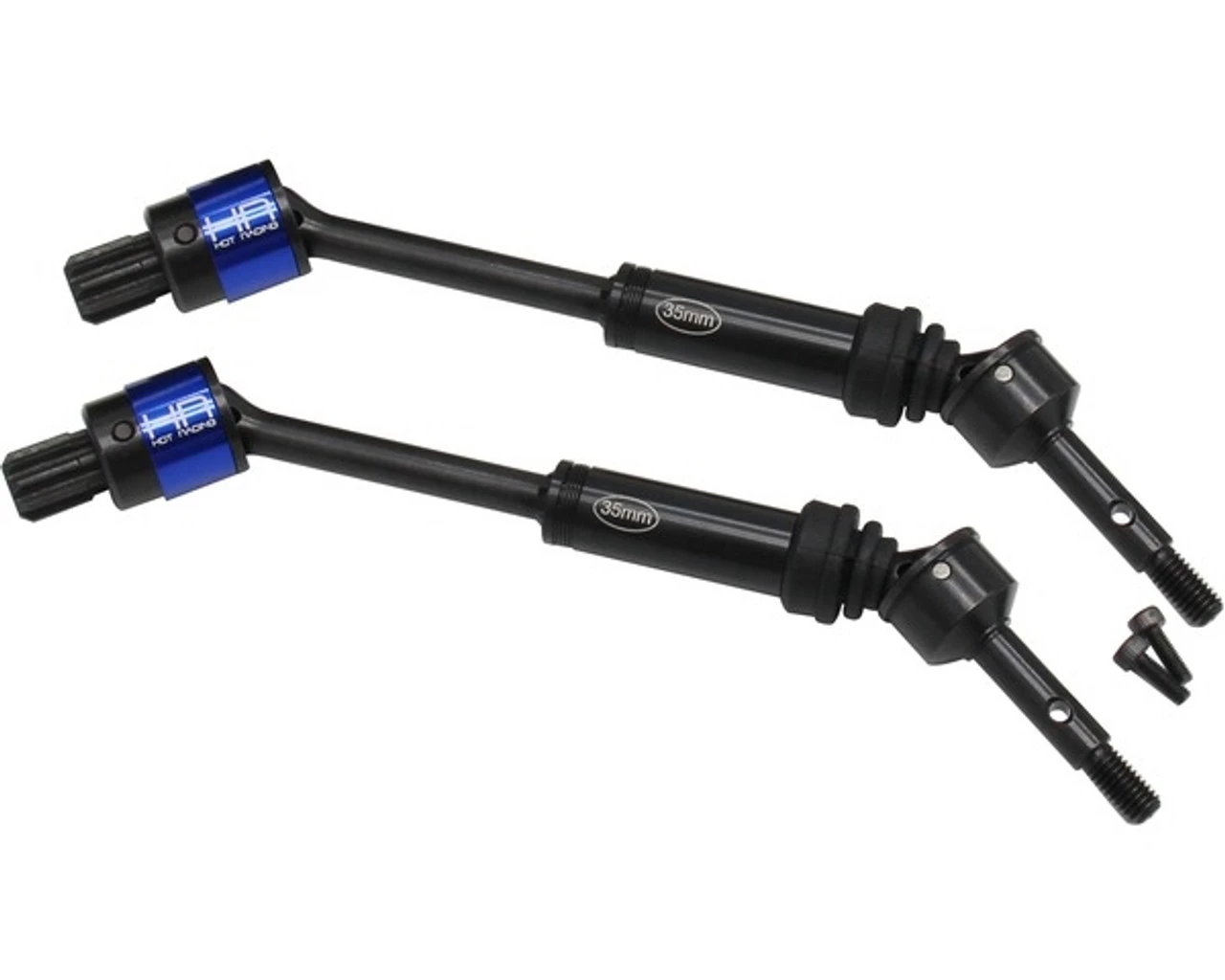

Hot Racing Traxxas UDR HD Steel Splined Front CV Driveshafts

This is the Hot Racing Heavy Duty Steel Splined Front CV Driveshaft Set for the Traxxas Unlimited Desert Racer (UDR). These shafts are built tough and eliminate the dogbone axle, preventing the shaft from popping out.

These axles replace Traxxas axle parts 8551 (drive cup & screw), 8550 (dogbone), 8553 (stub axle), and 8554 (CV joint).

Features
Completely replaces factory dogbone-style axles from the differential all the way out to the wheel hex
CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
CNC machined aluminum slider tube
Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement

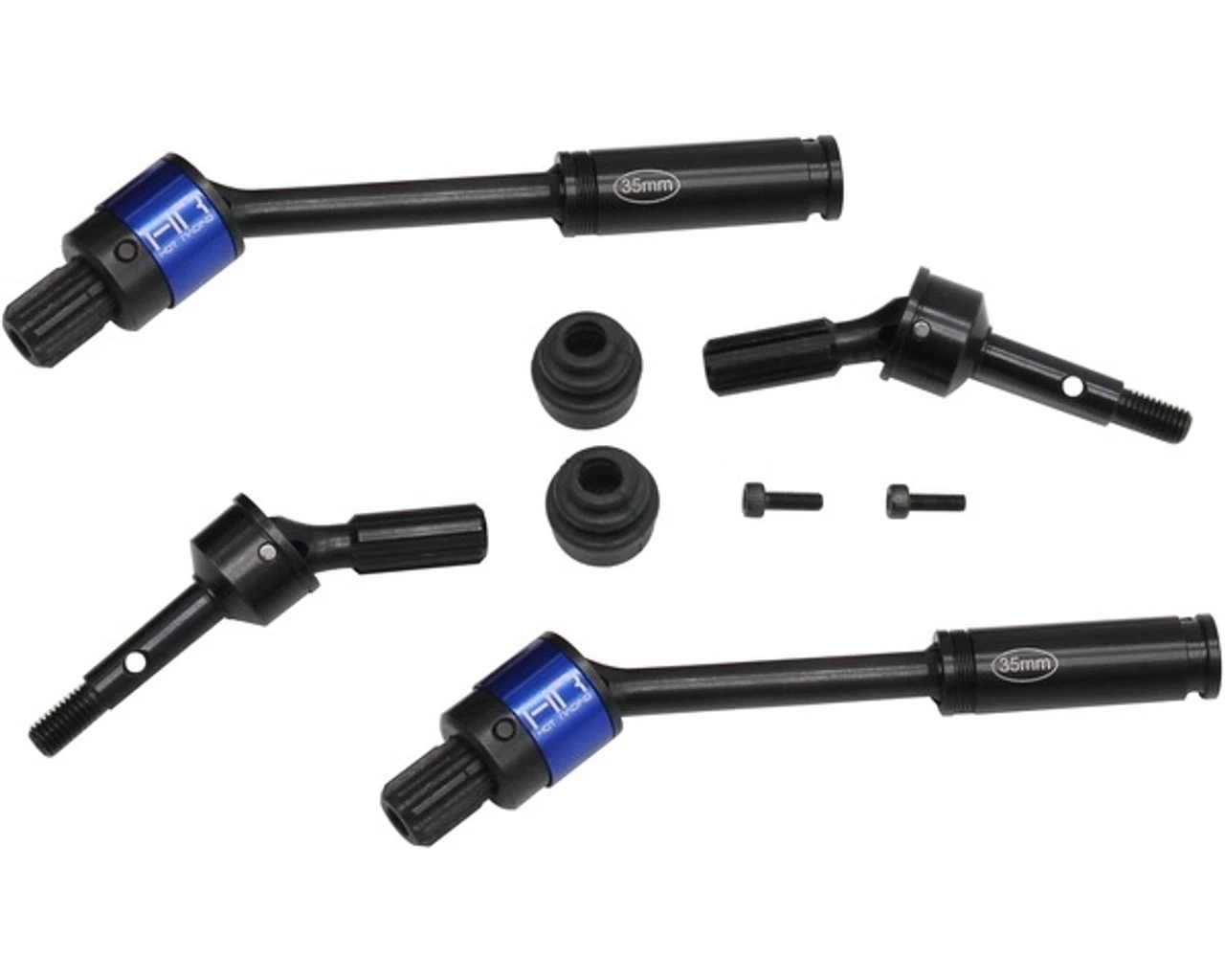

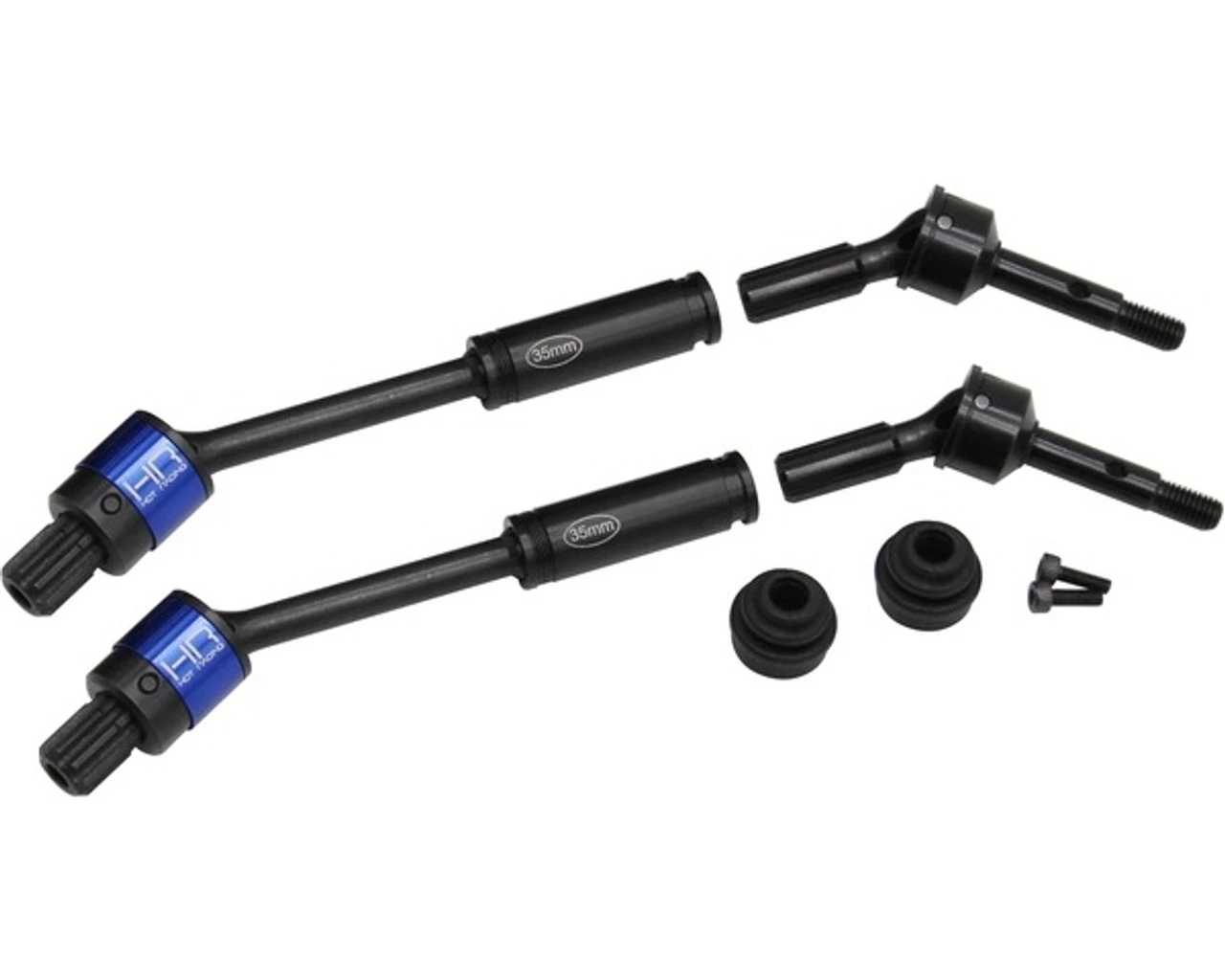

Includes
Two (2) front splined CVD shaft assemblies
Two (2) M4x2.5x15mm screw pins

Requires
– Installation to drive assembly
– Reuses drive pins
– Recommended to maintain CV joint and shaft spline with grease
– Recommended to medium thread lock on screws threading into metal

Specifications
– Collapsed length, overall: 154mm
– Extended length, overall resulting in zero shaft engagement: 164mm
– Collapsed length, wheel pin to outdrive pin: 138mm
– Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: 148mm
– Weight/pr: 132g
