Hot Racing Hardened Steel 72T 48P Spur Gear for Slash 2WD, Stampede 2WD, Rustler, Bandit

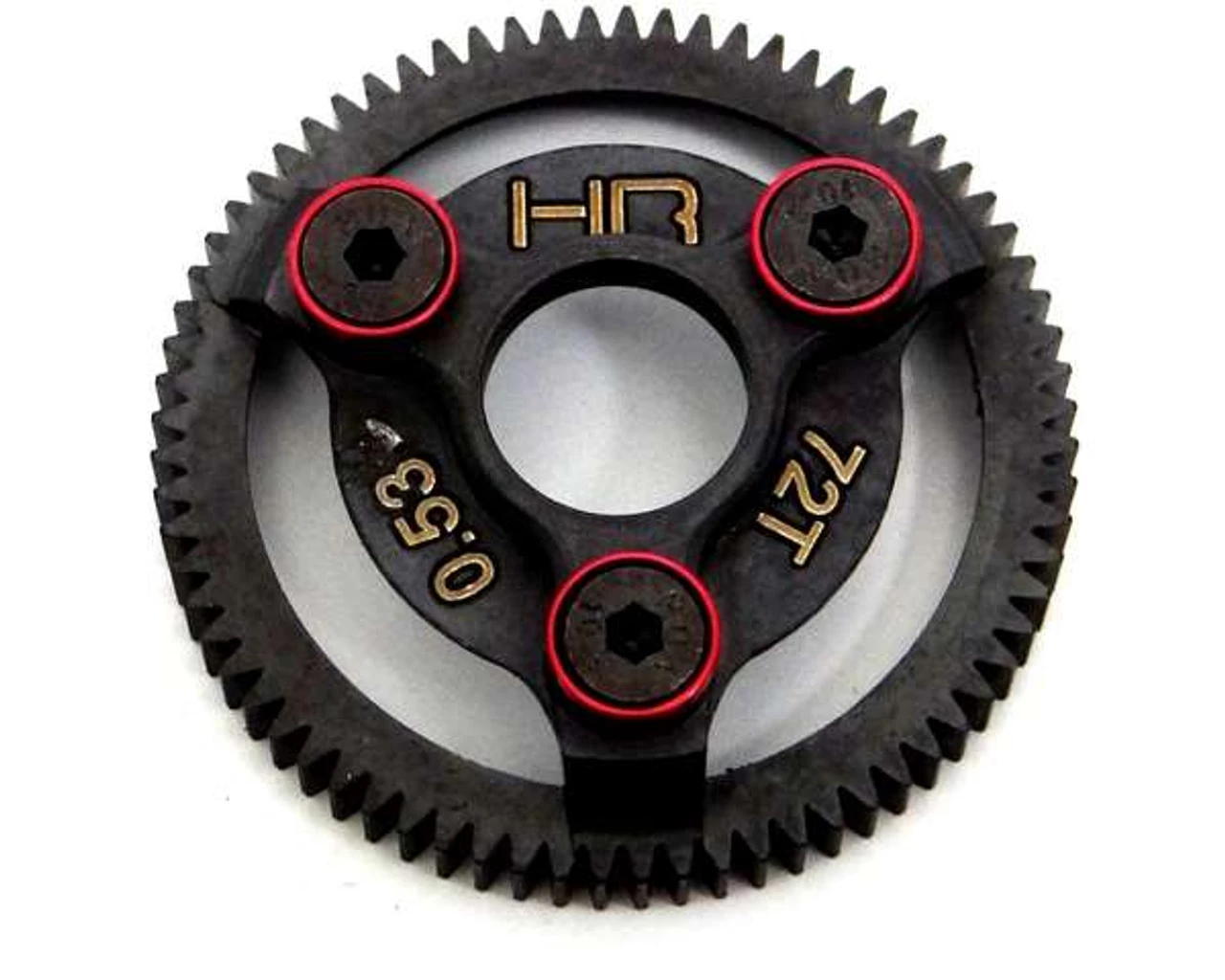

This is the Hot Racing Lightweight Hardened Steel 72-Tooth 48-Pitch Spur Gear for Traxxas Slash 2WD, Stampede 2WD, Rustler, Bandit, and Telluride vehicles. This will fit XL-5 brushed and VXL brushless trucks. A larger pinion gear will be required on some vehicles for proper adjustment due to the smaller diameter of this gear.

FEATURES:
– CNC machined and lightened hardened steel construction
– Replaces stock nylon spur gear
– Black oxide coated gear for durability and corrosion resistance
– Red anodized countersunk aluminum washers
– High strength hardware

YOU WILL RECEIVE:
– One (1) 72 tooth 48 pitch spur gear
– Three (3) mounting screws
– Three (3) red anodized countersunk washers
– Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)

SPECIFICATIONS:
– Number of Teeth: 72
– Gear Pitch: 48 pitch
– Mounting Holes: 3
– Tooth Face width: ~5mm

COMMENTS:
– Motor should no way exceed 180F (over 160F is not recommended). ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
– This spur gear is significantly smaller than the stock gear and will require a larger pinion gear for fitment. Consider a pinion gear in the 25-34 tooth range.
