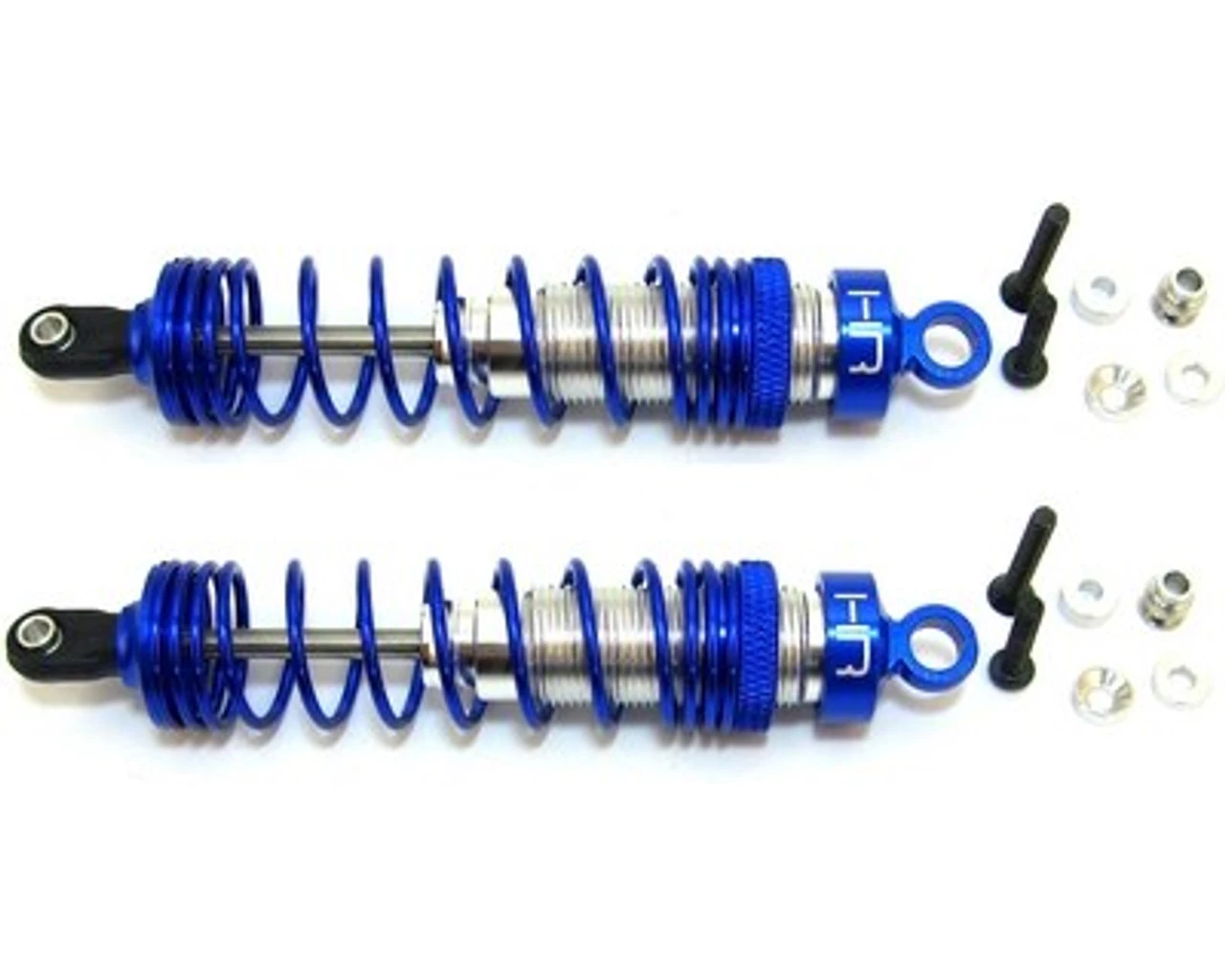

Hot Racing Aluminum 100mm HD Big Bore Rear Shocks for Slash, Stampede, Rustler

These are the Hot Racing Blue Aluminum 100mm HD Big Bore Rear Shocks for Slash 2WD, Slash 4×4, Stampede 2WD & 4×4, Rustler, Bandit, T-Maxx and E-Maxx front/rear, Associated SC10, and many other vehicles that can use 100mm shocks. These are also a great option for many rock crawlers and scale truck builds.

FEATURES:
– CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
– “Big Bore” threaded shock bodies
– CNC machined 11mm Delrin pistons
– 3.5mm stainless steel shock shafts
– Silver and blue anodized aluminum components
– Vented shock caps with bladder seals for consistent rebound dampening
– Threaded shock collars with o-ring to prevent unwanted movement
– Composite plastic lower shock ends with aluminum balls
– Fully assembled, just add shock oil and bleed

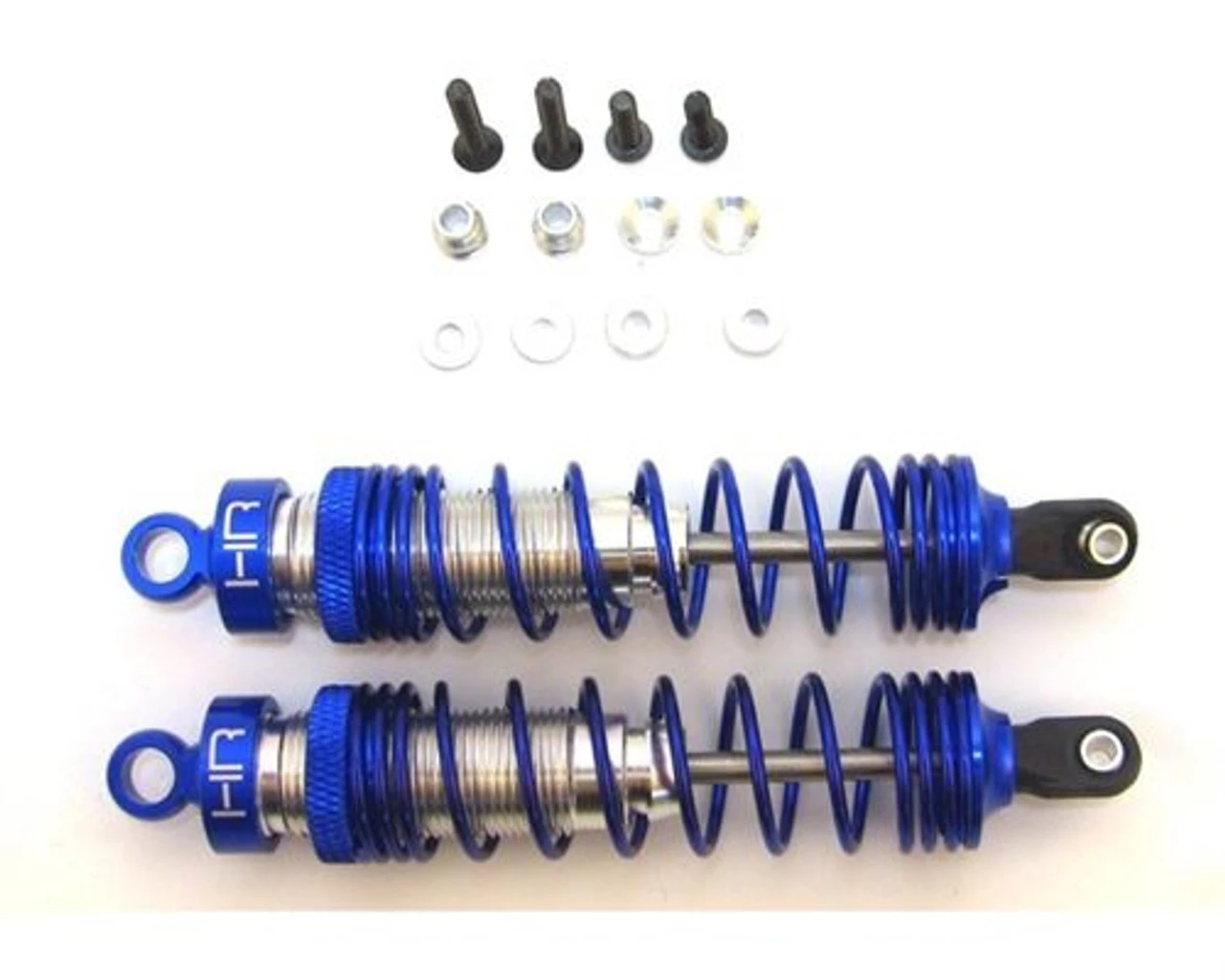

YOU WILL RECEIVE:
– Two (2) assembled shocks
– Two (2) M3x20mm flat head cap screws
– Two (2) M3x18mm button head cap screws
– Two (2) 3mm countersunk washers
– Two (2) 5.9 hollow balls
– Four (4) 1.5mm thick spacers
– Four (4) 3mm thick spacers

REQUIREMENTS:
– Silicone shock oil of modeler’s choice and bleeding per the typical bladder shock bleeding procedure
– Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal

SPECIFICATIONS:
– Replaces Traxxas Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X
– Extended length: 100mm
– Compressed length: 70mm
– Overall length: 110mm
– Spring: ~5.8lb/in, 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long

COMMENTS:
– Use spacers as need for installation
– Can be used with optional Hot Racing springs: SLF63FS261 (progressive), SLF63MR268 (linear), SLF63RS286 (progressive)
– See Hot Racing TD8100X06 for an eight (8) pack of 100mm shocks
– See Hot Racing TD90X06 and TD90PC06 for 90mm shocks
– Accepts optional Hot Racing silicone shock boot RDP34201
– See Hot Racing RTDS100X for replacement shock shafts and pistons
– See Hot Racing RTD910BN for replacement shock ends
– See Hot Racing RTD910RB for a rebuilt kit
– See Hot Racing RTD1010X for replacement bladders and lower seals
