Hot Racing 52T Mod 1 Steel Spur Gear for E-Revo 2, X-Maxx, XO-1

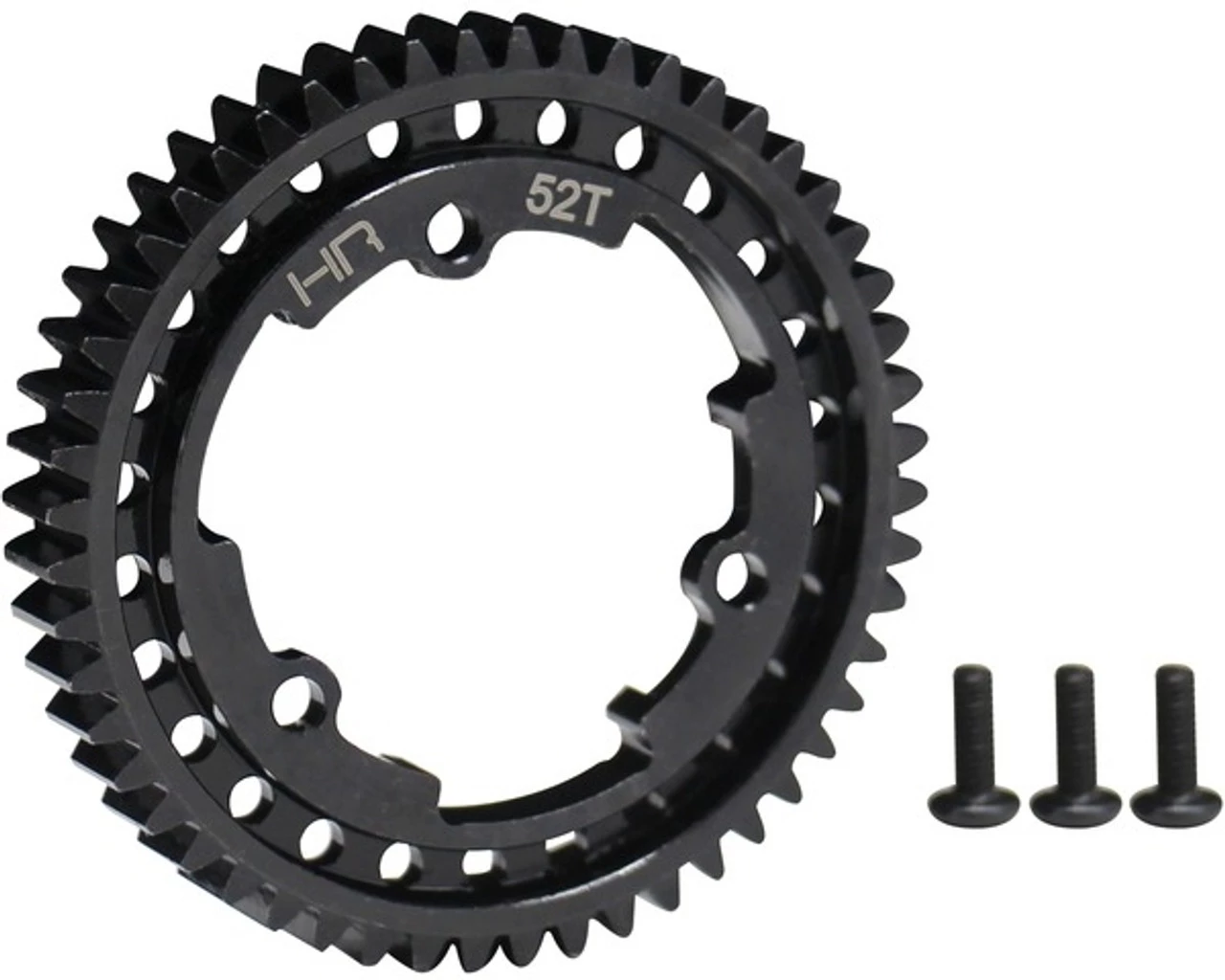

This is the Hot Racing 52-Tooth Mod 1 Hardened Steel Spur Gear for Traxxas E-Revo 2.0, X-Maxx 6S & 8S, and XO-1 vehicles.

Features
– CNC machined hardened steel construction
– Black oxide finished
– Laser etched tooth count marking

Includes
One (1) 52T, 1 mod steel spur gear
Three (3) mounting screws

Recommendations
– Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 – Adjusting Gear Mesh)
– With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

Specifications
– Overall diameter: 54mm
– Gear face width: 8mm
