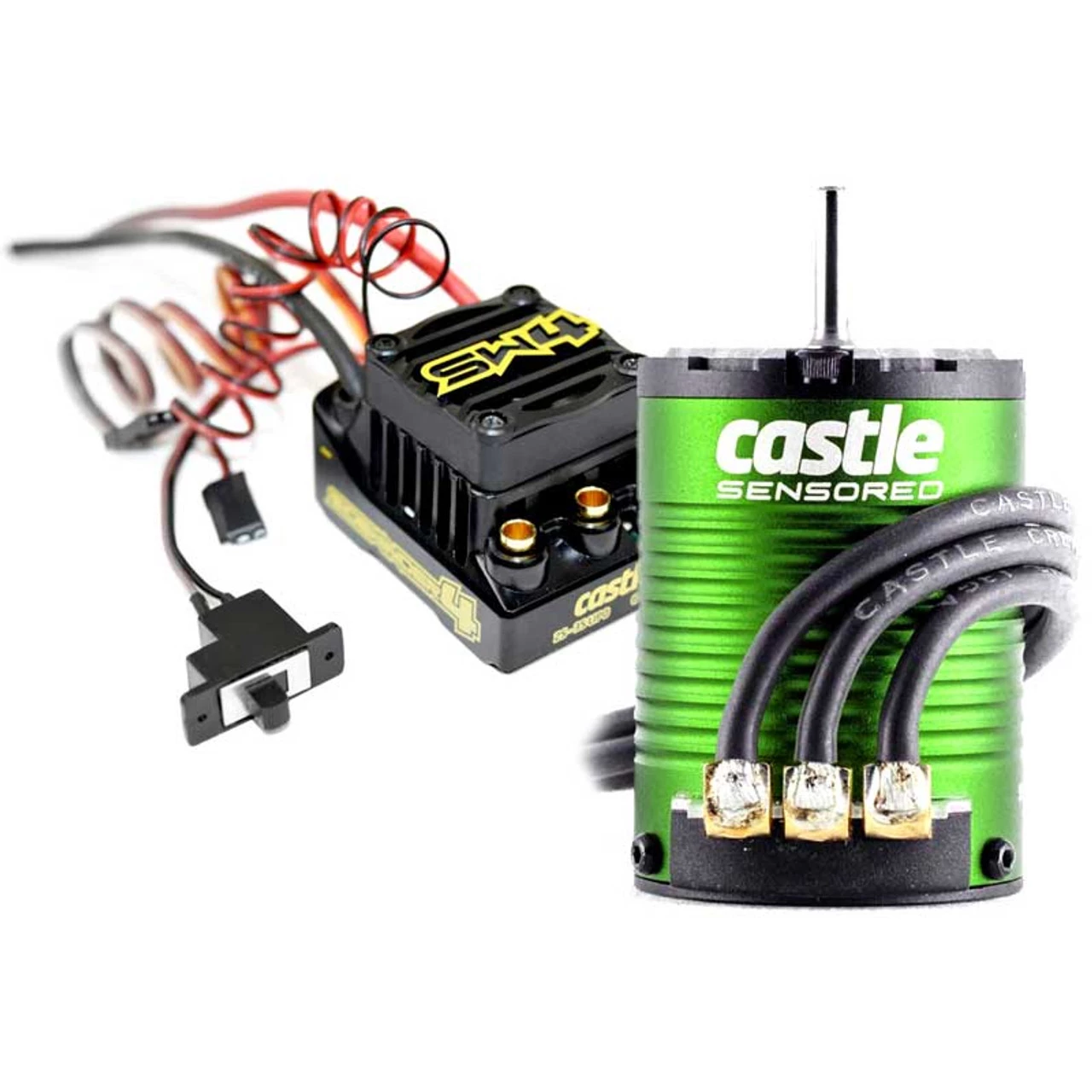

Castle Creations Sidewinder SW4 Waterproof ESC & 1410-3800Kv Brushless Motor Combo

This is the Castle Creations Sidewinder SW4 Waterproof ESC and 1410-3800Kv Brushless Motor Combo with 1/8″ (3.17mm) Shaft. This combo is a great setup for 2S power in vehicles like the Traxxas Slash 2WD and 4×4, or up to 3S in the 2WD Rustler, Bandit and others.

Send it with Sidewinder!
While the all new SIDEWINDER 4 builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle’s newest technology, CRYO-DRIVE. CRYO-DRIVE combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.

Features:

• 2s-3s LiPo; 6-8 cell NiMH use in vehicles up 6.5lbs with battery, ready-to-run.
• Sensorless brushless and/or brushed motor operation.
• Waterproof design ESC and splash resistant 30MM fan*
• 5.0 volts fixed, 2 amps Peak BEC
• Audible alerts for error conditions
• Enhanced drag brake functionality
• Smoother sensorless startups
• Convenient transmitter programming for six common adjustable settings
• Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately)
• Telemetry Link compatible for Futaba S.BUS2 (sold separately)

The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications. Whether throwing dirt, ripping through a corner or steadily dominating the trails, we’ve got you covered!

This combo includes a Sidewinder 4 ESC and 1410-3800Kv motor. The 1410-3800kv is perfect for short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.

Sidewinder 4 combo includes:

Sidewinder 4 ESC
Castle 1410-3800Kv motor
Driver’s Ed and Guide Start Guide
1/10th scale gearing chart
Decal sheet

ESC Specifications

Input Voltage Range: 2s-3s LiPo; 6-8 cell NiMH
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: 30mm fan included
ESC Size: L: 2.08″ (52.92mm)
W: 1.50″ (38.05mm)
H: 1.28″ (32.56mm)
ESC Weight (w/wires): 2.26 oz. (64 g)
Connectors: 4mm female bullets for motor connection.

Product Use Statements:
*Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

Application Guidelines: For short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.

Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Telemetry Link Capable: No

Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas Power Cells). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

Motor Specifications

Input Voltage Range: 2-3S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g/ 8.4oz
Shaft Size: Length: 15mm
Diameter: 1/8″ (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: For short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Max. Recommended Vehicle Weight: 6.5lbs

Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180 degrees F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions.

Requires

ESC/Battery Connector – Castle 4mm polarized connectors, Dean’s Ultra Plug, or Traxxas Power Connector recommended.
