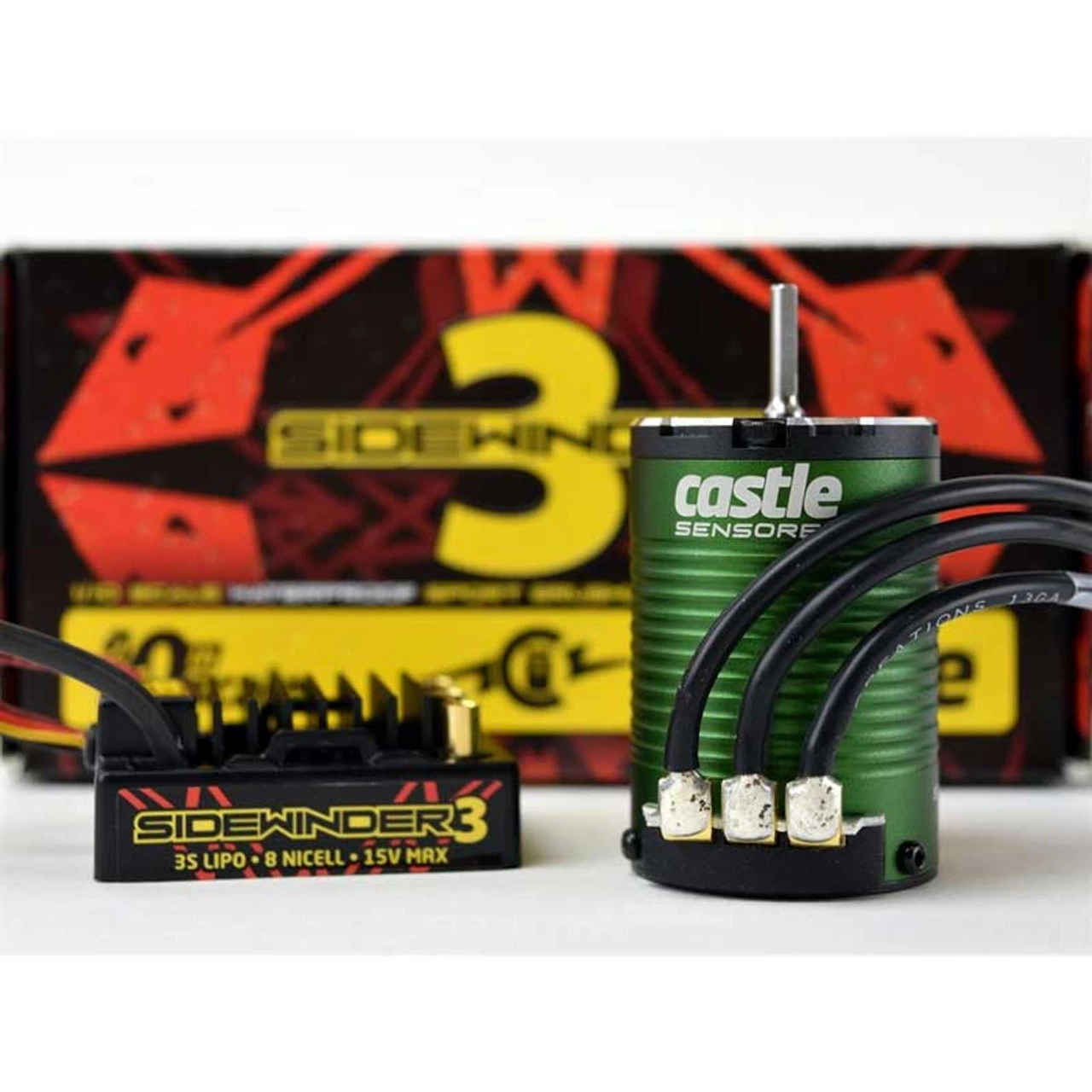

Castle Creations Sidewinder SV3 Waterproof ESC & 1406-4600Kv Brushless Motor

This is the Castle Creations Sidewinder SV3 Waterproof ESC and 1406-4600Kv Brushless Motor with 1/8″ (3.17mm) shaft.  The 4600kv motor is a great motor for 2WD short course trucks on 2s LiPo and geared conservatively. It makes a great combo for 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s; temperatures will climb quickly on 3s. It makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use.

Don’t Be Afraid to Get Wet!

Sidewinder 3 with 1406-4600Kv sensored* brushless motor is the perfect waterproof** combo for 1:10 scale off-road, on-road, and rock crawlers running up to 3S LiPo***. It sports updated circuitry for faster response time and improved reliability. This combo now comes with our new sensored* motor. While the sensored capabilities of the motor cannot be utilized with the Sidewinder 3, users will benefit as the sensored motor is rebuildable, and this design even allows modelers to replace damaged motor wires. The Sidewinder 3 Combo will give you exceptional response and performance right of the box!

This combo includes a Sidewinder 3 ESC and 1406-4600Kv sensored* motor. The 1406-4600kv motor is a great motor for 2WD short course trucks on 2s LiPo and geared conservatively. It makes a great combo for 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s; temperatures will climb quickly on 3s. It makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.

Please refer to the Castle Creations Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.

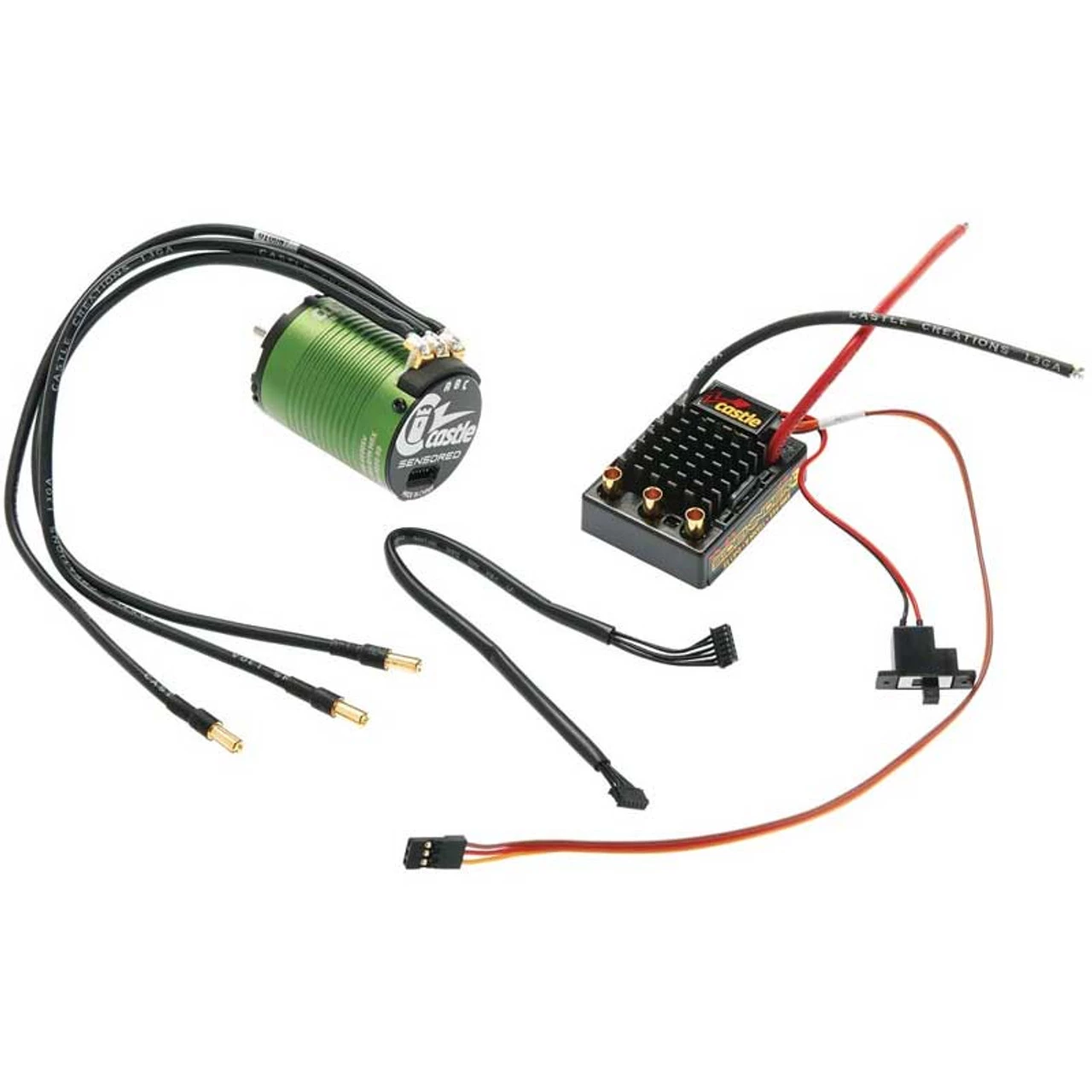

Sidewinder 3 Combo includes:

Sidewinder 3 ESC
Castle 1406 1Y 4600 Kv sensored* motor
Driver’s Ed and Quick Start Guide
1/10th scale gearing chart
Decal sheet

* Sensored capabilities of the motor cannot be utilized with the Sidewinder 3. If you require sensored operation you will need a sensored ESC like the Mamba X.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

***Brushed motors are recommended for rock crawlers (vehicles traveling 3-5mph.) Brushless motors are fine for use with rock racing. If your vehicle is going to be in a bound up situation, very slowly traversing rocks and obstacles, you are running a rock crawler. If you are constantly traveling at 5mph or higher, you have a rock racer.

ESC Specifications

Input Voltage Range: 2s – 3s LiPo; 6 – 8 cell NiMH
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Available, but not included
ESC Size: L: 1.93″ (49mm)
W: 1.48″ (38mm)
H: 0.79″ (20mm)
ESC Weight (w/wires): 1.96 oz. (55.5 g)
Connectors: 4mm female bullets for motor connection.

Product Use Statements: *Although Sidewinder 3 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Application Guidelines: For 2WD short course trucks on 2s LiPo and geared conservatively.
1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing.
Great for 1/10th scale on-road cars for 2s and 3s use.
NOT for use in 4WD short course trucks.

Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.

Recommended Motors: Combo includes 1406-4600kv brushless motor.
Max. Recommended Vehicle Weight: No more than 5lbs with battery, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: No

Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas Power Cells). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

Motor Specifications

Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197g/ 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8″ (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: For 2WD short course trucks on 2s LiPo and geared conservatively.
1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing.
Great for 1/10th scale on-road cars for 2s and 3s use.
NOT for use in 4WD short course trucks.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
Max. Recommended Vehicle Weight: 5lbs

Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180 degrees F on the the motor or ESC.

Water Resistant Design: Routine maintenance is recommended after running in wet conditions.

Requires

Battery Connector required; Castle 4mm polarized connectors, Dean’s Ultra Plug, or Traxxas High-Current Connector recommended.
