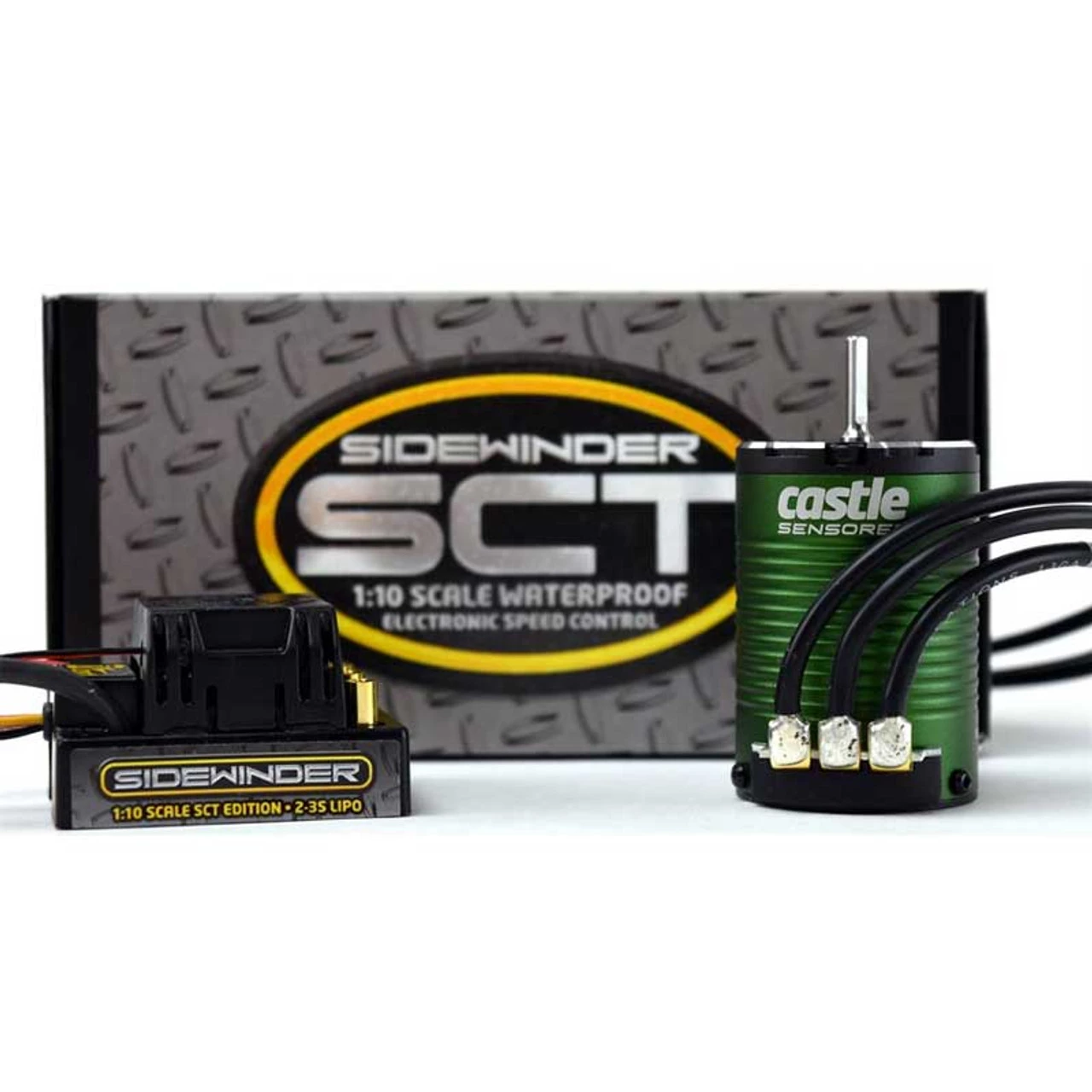

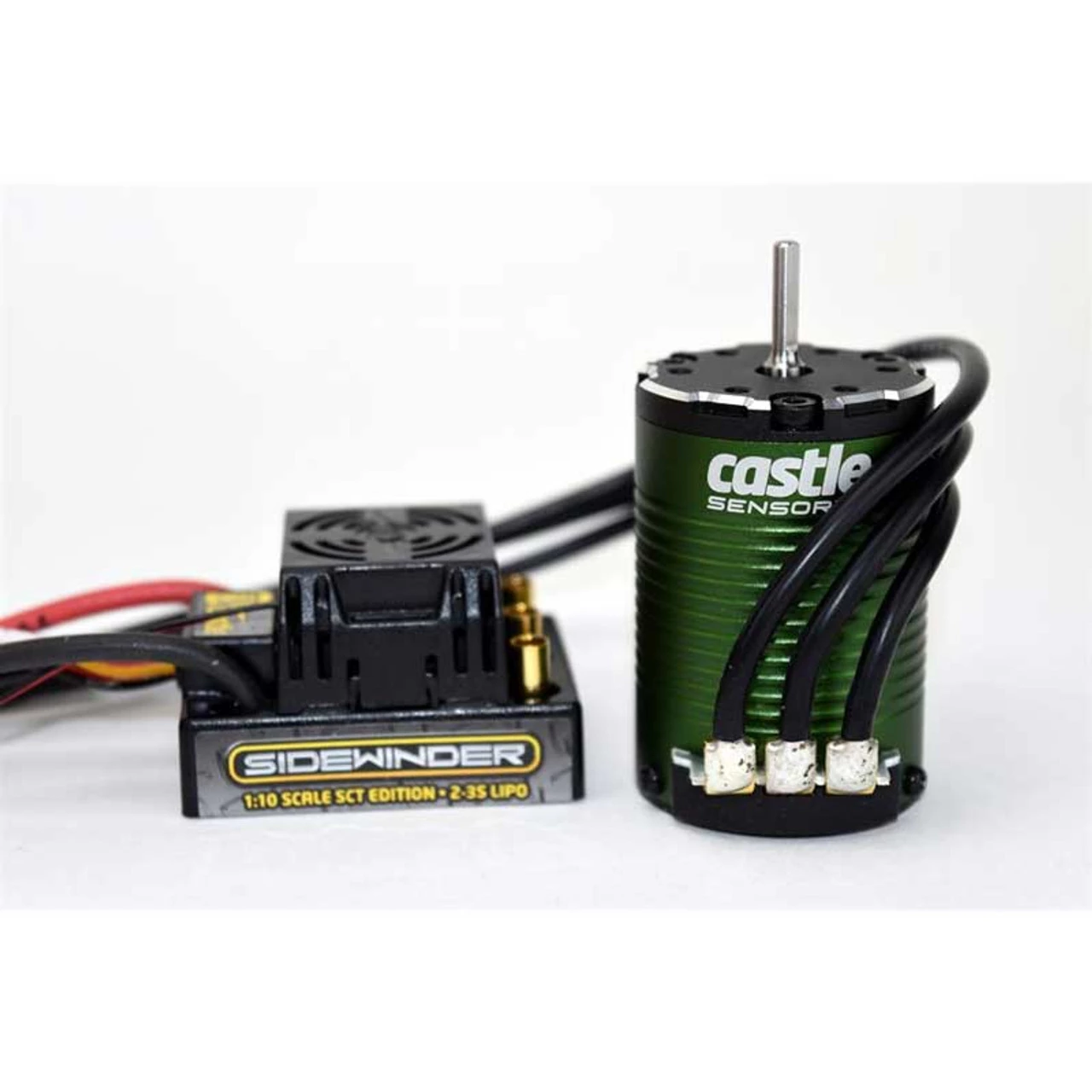

Castle Creations Sidewinder SCT Waterproof ESC & 1410-3800kv Brushless Motor

This is the Castle Creations Sidewinder SCT Waterproof ESC and 1410-3800kv Brushless Motor with 1/8″ (3.17mm) Shaft. This setup is intended for 1/10 short course trucks running on 2s LiPo and weighing up to 6.5 lbs. It is also a great system and a torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.

This system is a great option for Traxxas Slash 2WD, Slash 4×4, Rustler 2WD, Stampede 2WD, and Bandit vehicles on 2S LiPo power.

Lead the Short Course Truck Pack!

Sidewinder SCT is Castle’s solution for anyone who needs an unbeatable combination of power and affordability in a special edition controller and motor combo made for Short Course Truck racing. Intended for short course trucks running on 2s LiPo and weighing up to 6.5 lbs. It is also a great system and a torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo. This combo now comes with our new sensored** motor. While the sensored capabilities of the motor cannot be utilized with the Sidewinder SCT, users will benefit as the sensored motor is rebuildable (parts available soon), and this design even allows modelers to replace damaged motor wires. The Sidewinder SCT Combo will give you exceptional response and performance right of the box!

The ESC (electronic speed control) offers power to spare at 2-3S LiPo, and a waterproof* case that can perform in just about any environment.

Sidewinder SCT combo includes:

Sidewinder SCT Edition ESC
Castle 1410 1Y 3800 Kv sensored** motor (with 3.2mm shaft)
Driver’s Ed and Quick Start Guide
1/10th scale gearing chart
Decal sheet

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit

** Sensored capabilities of the motor cannot be utilized with the Sidewinder SCT. If you require sensored operation you will need a sensored ESC like the Mamba X.

ESC Specifications

Input Voltage Range: 2s-3s LiPo; 6-9 cell NiMH (2s only for Short Course Trucks)
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped, fully removable** (see Product Use Statements below)
ESC Size: L: 1.93″ (49mm)
W: 1.48″ (38mm)
H: 0.79″ (20mm)
ESC Weight (w/wires): 1.96 oz. (55.5 g)
Connectors: 4mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required; Castle 4mm polarized connectors, Dean’s Ultra Plug, or Traxxas Power Connector recommended.

Product Use Statements: *Although Sidewinder SCT and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Application Guidelines: Intended for short course trucks running on 2s LiPo and weighing up to 6.5 lbs. It is a torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Recommended Motors: Combo includes 1410 3800Kv: Max Cells: 2S LiPo or 6-8 NiMH for short course trucks.
Max. Recommended Vehicle Weight: Up to 6.5lbs. on 2s
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: No

Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas Power Cells). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

Motor Specifications

Input Voltage Range: 2-3S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g / 8.4oz
Shaft Size: Length: 15.5mm
Diameter: 1/8″ (3.17m)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
Recommended ESC(s): Combo includes Sidewinder SCT.

Requires

Battery Connector required; Castle 4mm polarized connectors, Dean’s Ultra Plug, or Traxxas Power Connector recommended.
