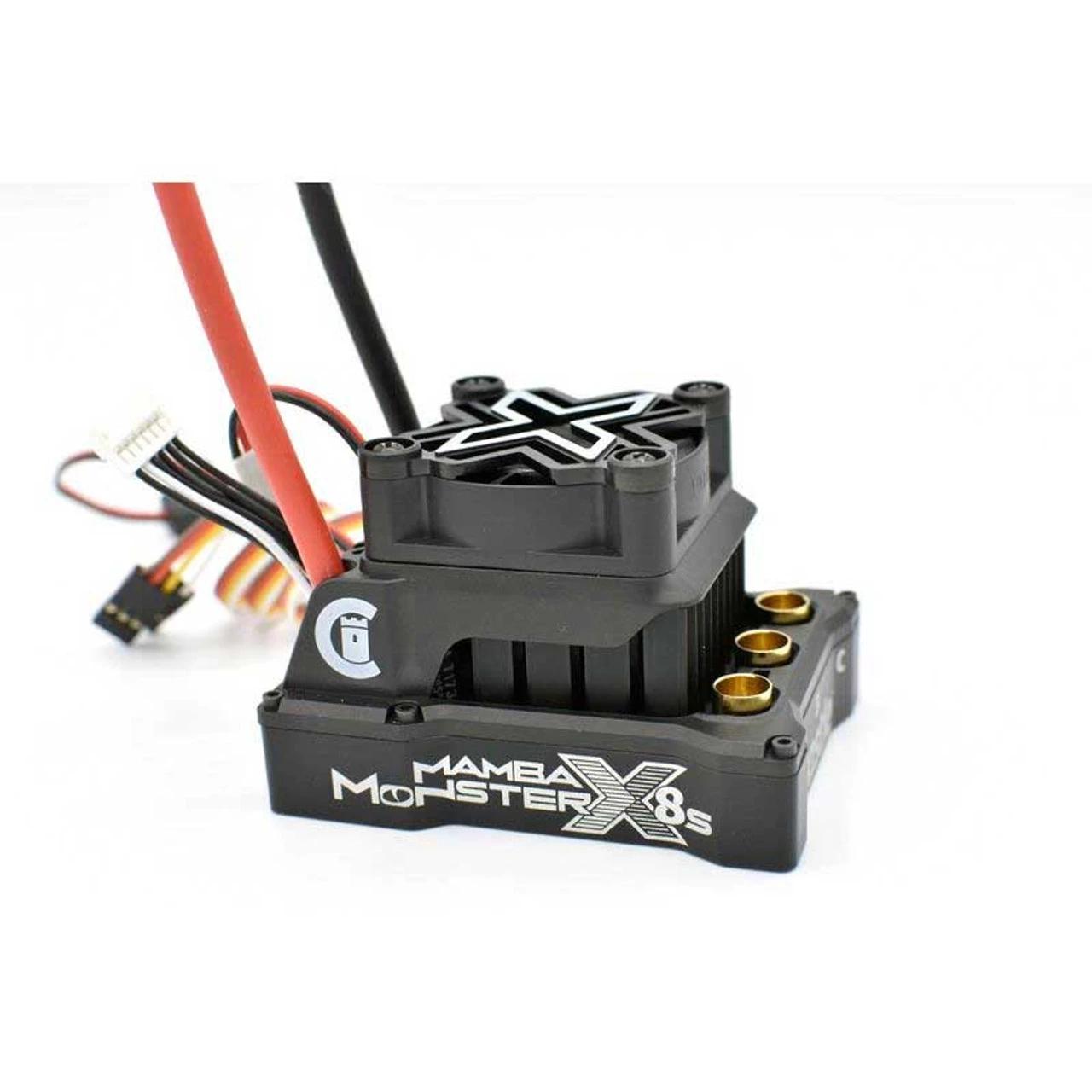

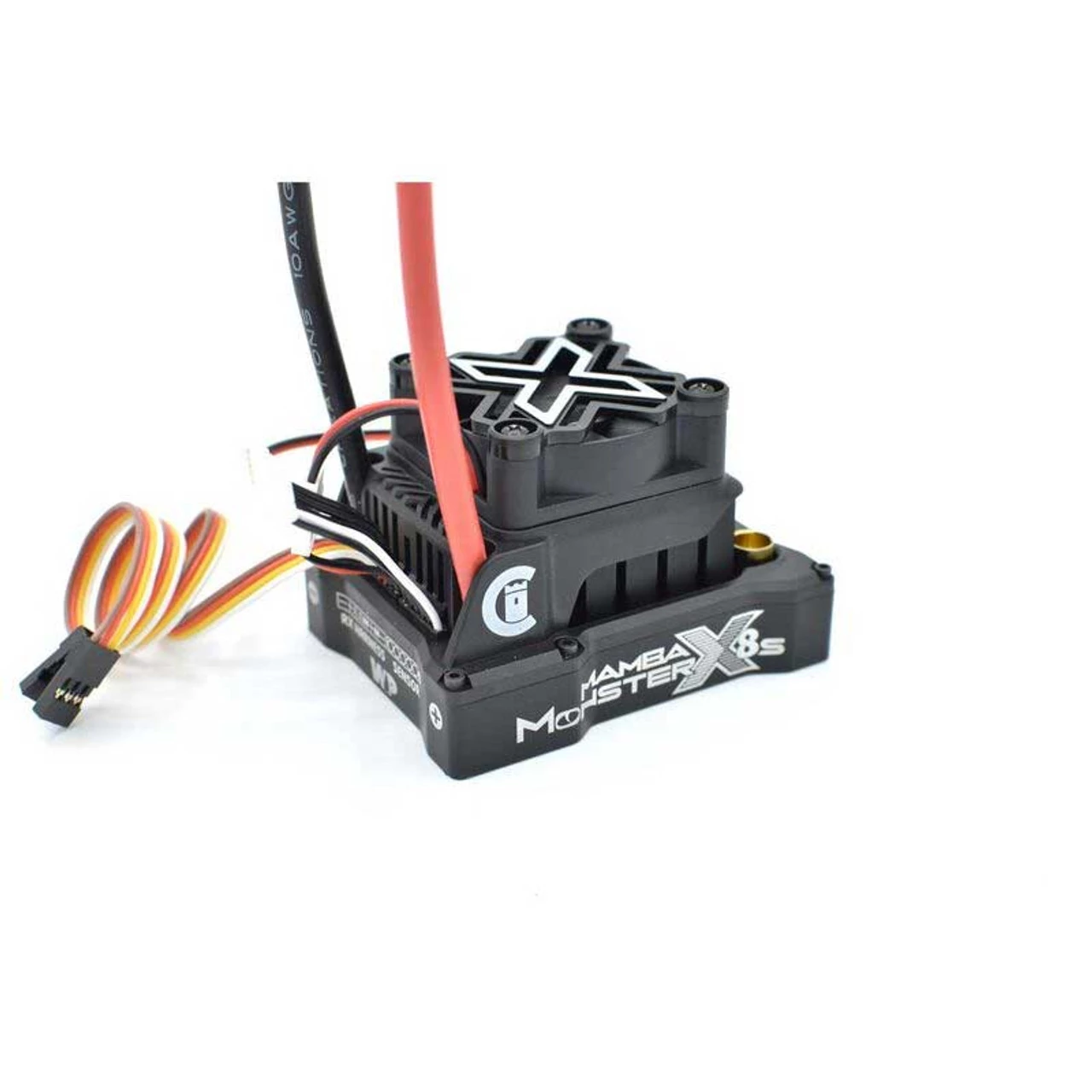

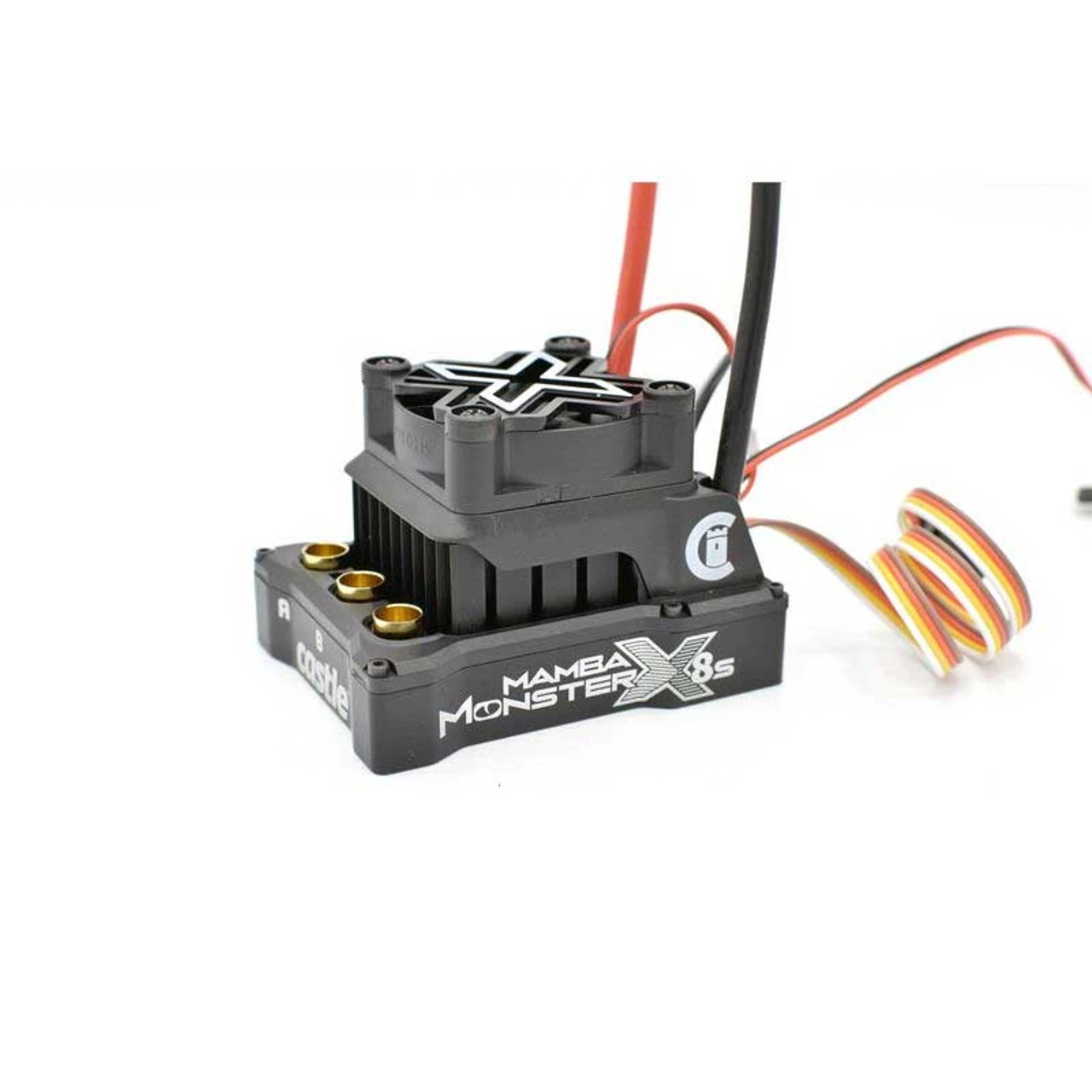

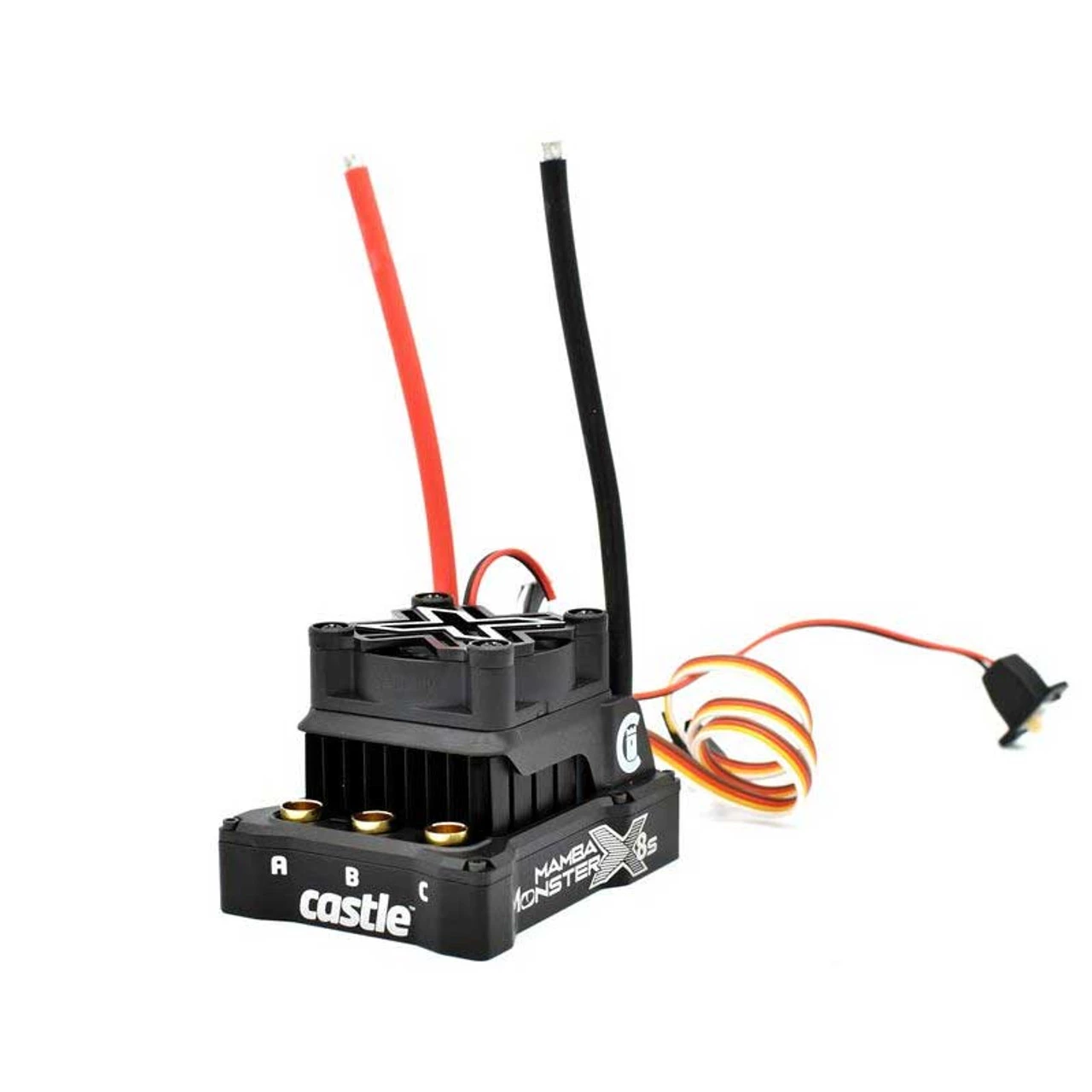

Castle Creations Mamba Monster X 8S 1/6 Brushless ESC

This is the Castle Creations Mamba Monster X 8S 1/6 Brushless ESC for vehicles up to 25 lbs with up to 8S LiPo power.

Take your 1:6th scale build or upgrade to the next level with Castle’s legendary brushless power. With the introduction of the MAMBA MONSTER X 8S any R/C vehicle weighing up to 25lbs, and running up to 8S LiPo, is fair game.

Note: This is not a direct replacement to the Mamba XLX. The XLX still handles rawer full throttle power in the most extreme setups.

RACER TESTED – BASHER APPROVED
Drive fearlessly and punch that throttle! The MAMBA MONSTER X 8S utilizes Castle’s breakthrough technology CRYO-DRIVE. By reducing the rate at which the ESC heats up and removing heat more efficiently, your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a whole new level.

High-performance demands high quality and this ESC was designed with durability in mind. Constructed around a robust aluminum casing, the epoxy potting guarantees protection around the circuitry and ensures all-weather use. Mamba Monster X 8S is a workhorse, it will dominate in the harshest of environments.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows PC, or wirelessly with the convenience of the new B-Link Bluetooth Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Rock Race Mode. Optimize your vehicle for any racing or bashing application you can imagine!

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR such as the 2028-800KV or 1515-2200KV, users with heavy, high speed rigs will experience controllable low-end ranges without sacrificing power, punch or speed. SmartSense mode uses the motor’s sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. You’ll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

Whether you are burning out, dropping the hammer, trigger happy, powering out, on-the rocks, off-the-rocks, wheeling or mud bogging – MAMBA MONSTER X 8S is ready to test the limits of your R/C car or truck.

Features

• Input Voltage Range 2S-8S LiPo
• Sensorless, Sensored and SmartSense Running Modes
• Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
• CRYO-DRIVE Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
• Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
• Oversized factory equipped thermally controlled 40MM cooling fan
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
• Waterproof design for all weather conditions
• Data logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for “on-the-fly” adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Easily tune and update ESC with USB and Bluetooth programming options
• Castle Link USB programming kit (coupon included with purchase)
• Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store
• Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations’ 1-year warranty

Includes

• Mamba Monster X 8S ESC
• Castle Sensor Harness Adapter
• Mamba Decals
• Coupon for free Castle Link USB
• Motor connection wire, bullets and shrink
• ESC Quick Start Guide
• Motor Quick Start Guide

Specifications

Application Guidelines: 1:6th Scale vehicles weighing up to 25 lbs
Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo 33.6V
Running Modes: Sensored, Sensorless and SmartSense when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
Size: L x W x H 69.5mm x 54.1mm x 47mm
Weight (with wires): 5.75 oz. (163 grams)
Connectors type: 6.5mm female bullets for motor connection
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery input leads.
Operating environment: Waterproof design for all weather conditions
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Product Use Statements: We recommend using 50C continuous discharge or higher LiPo batteries.
Surge ratings should never be used to determine a pack’s suitability for a brushless application.
We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
Applying voltages higher than 33.6V will cause irreparable damage to ESC.
Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
